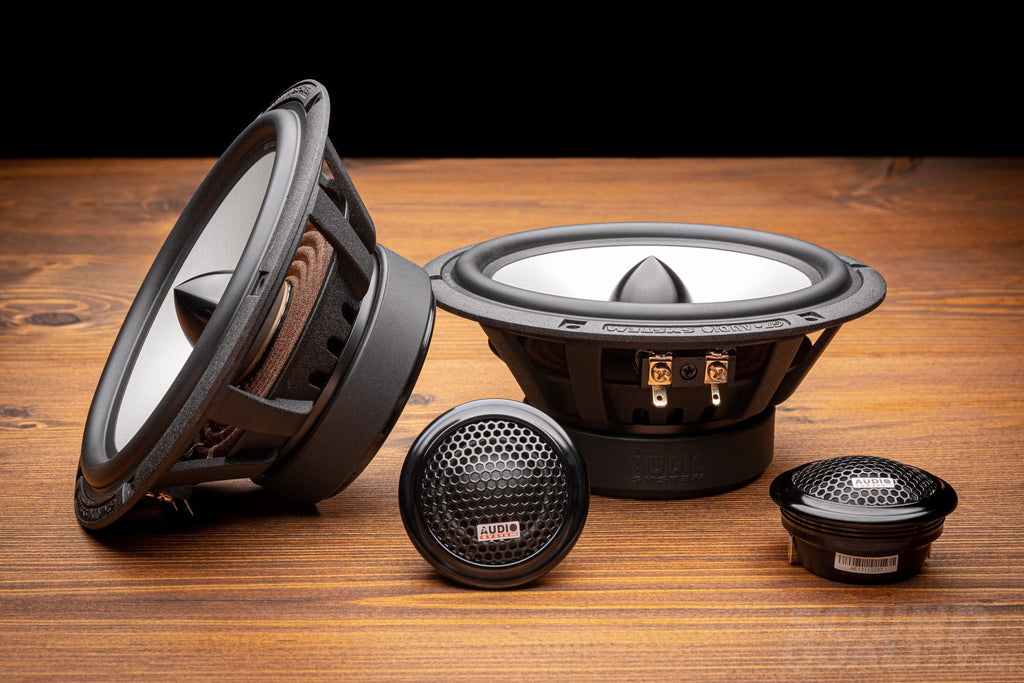

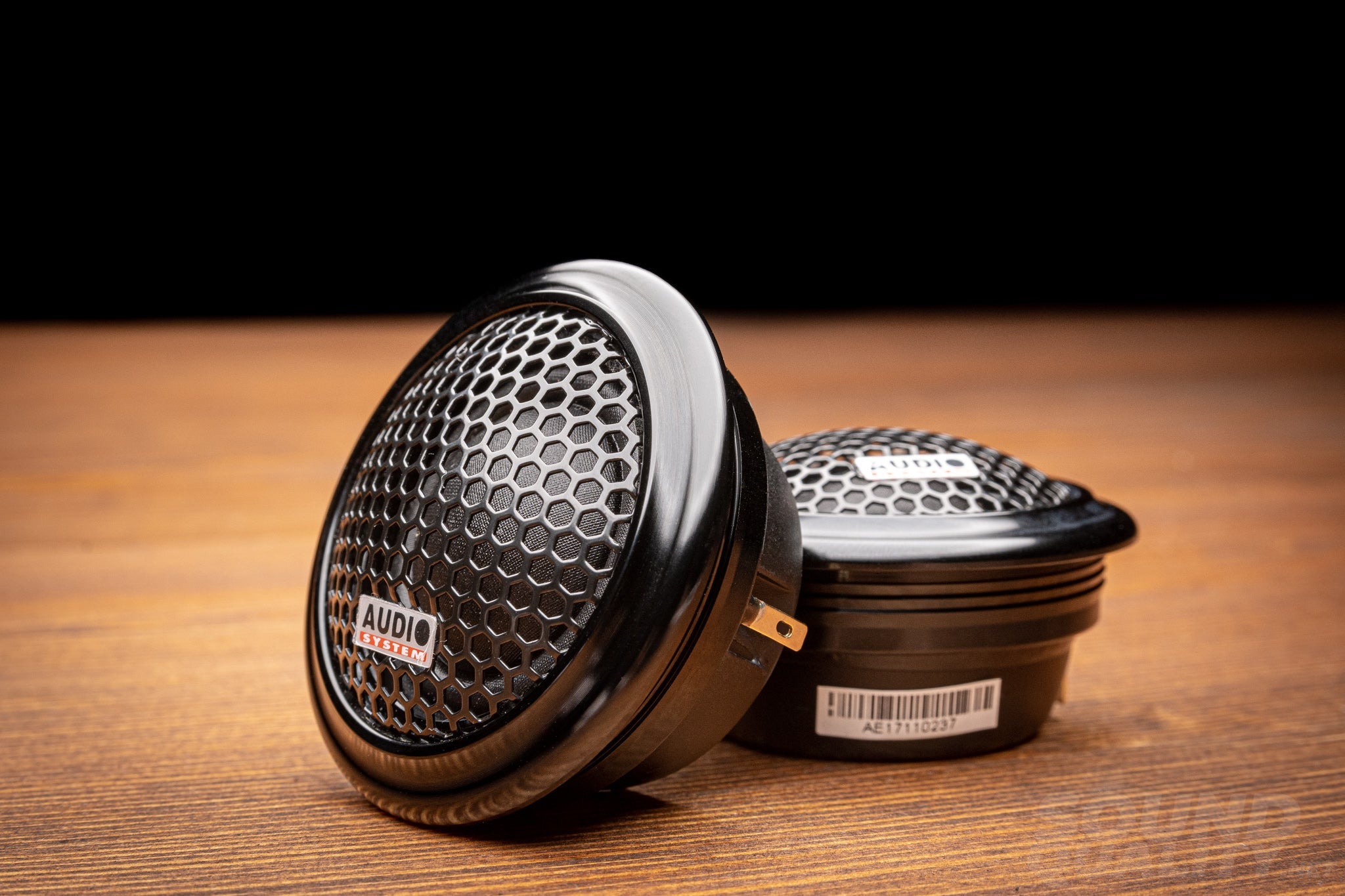

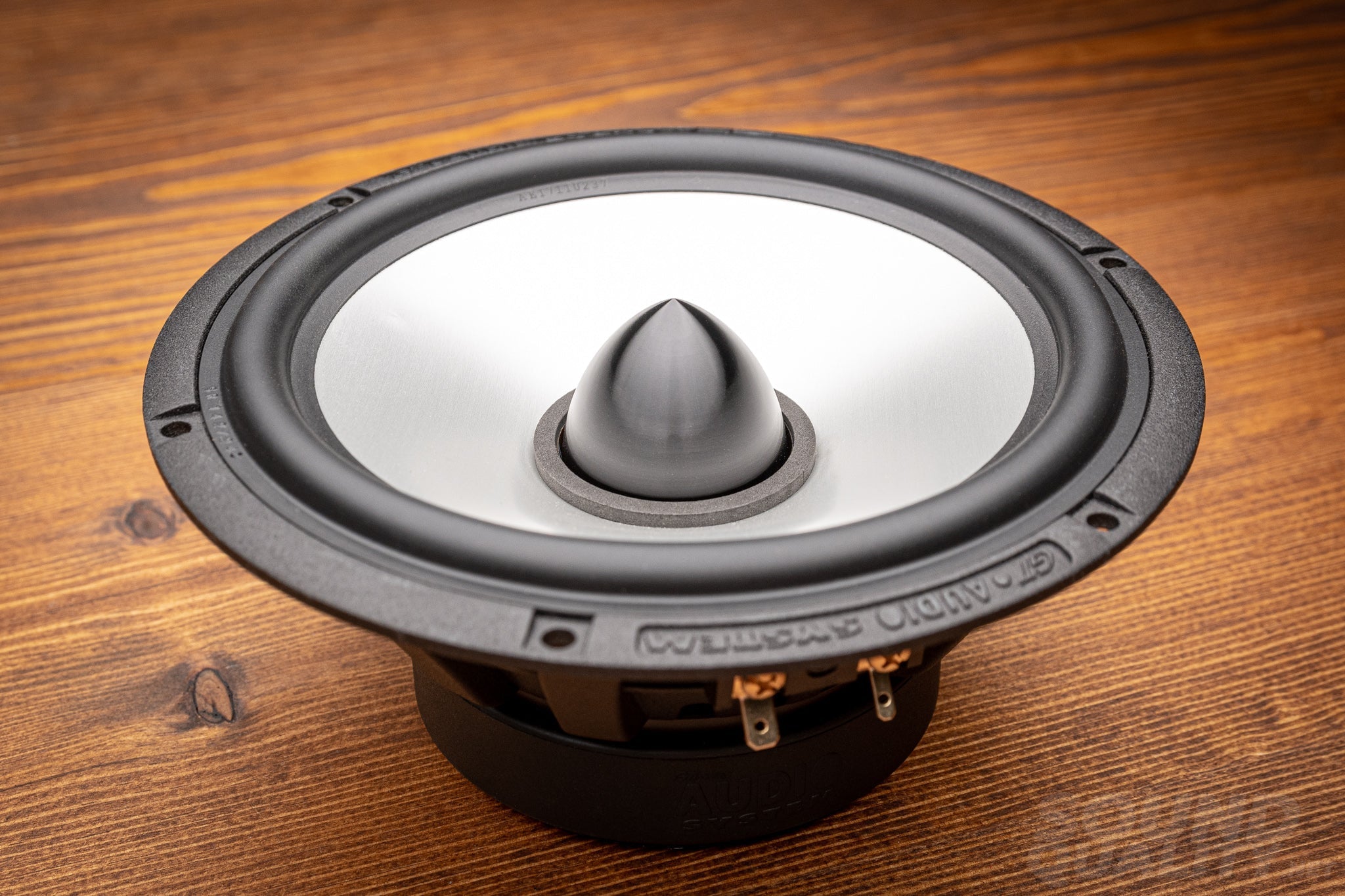

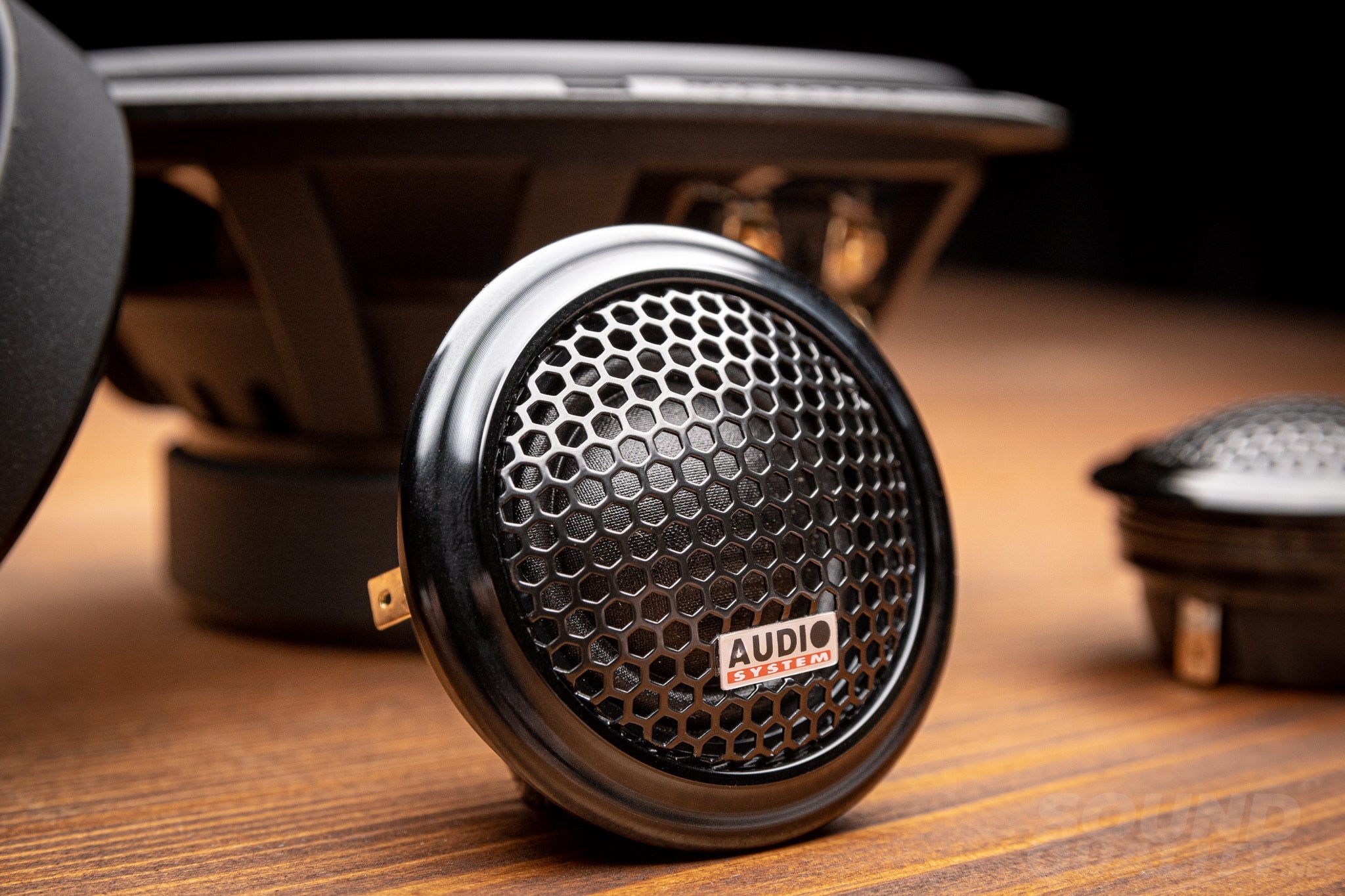

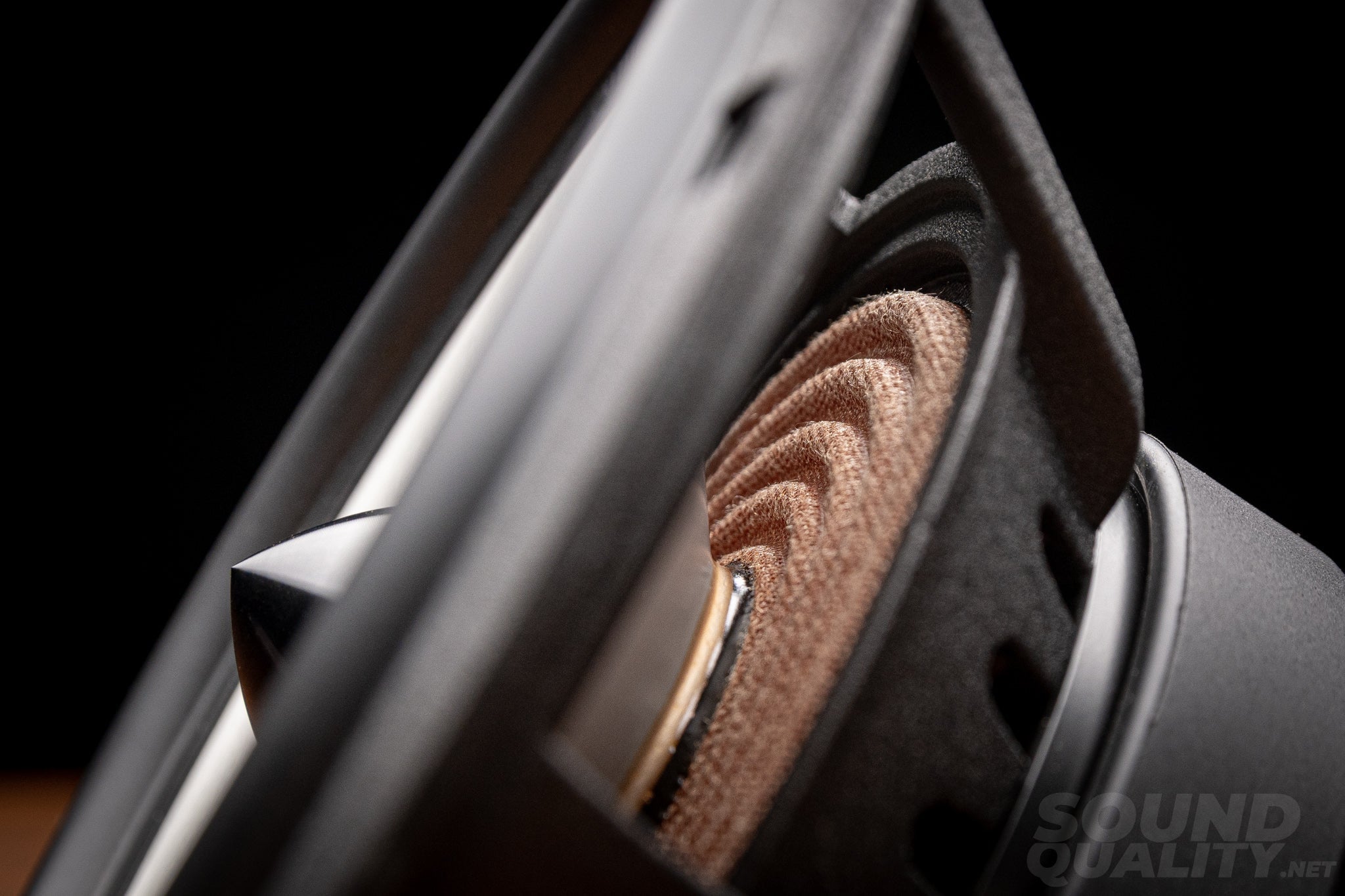

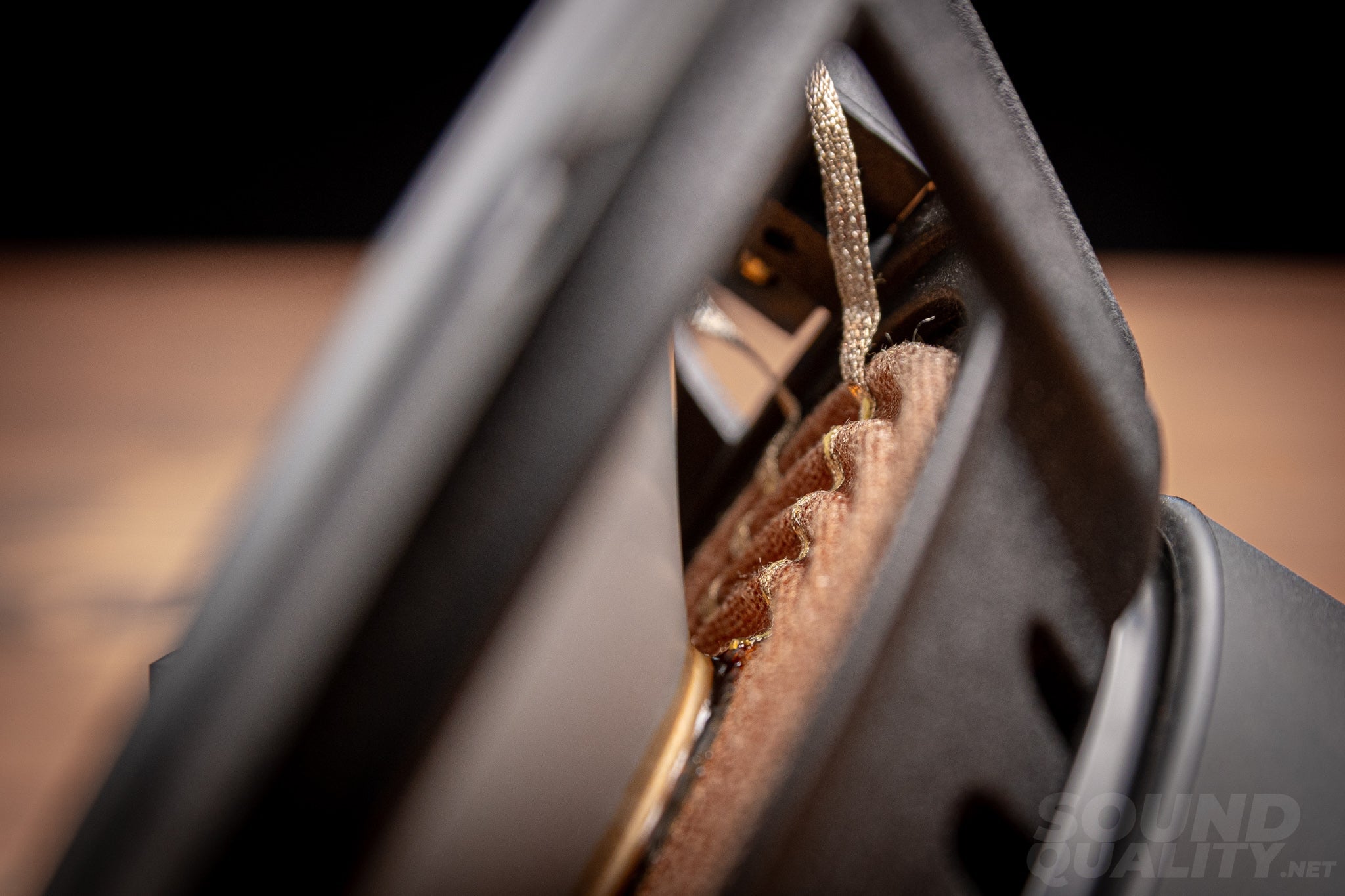

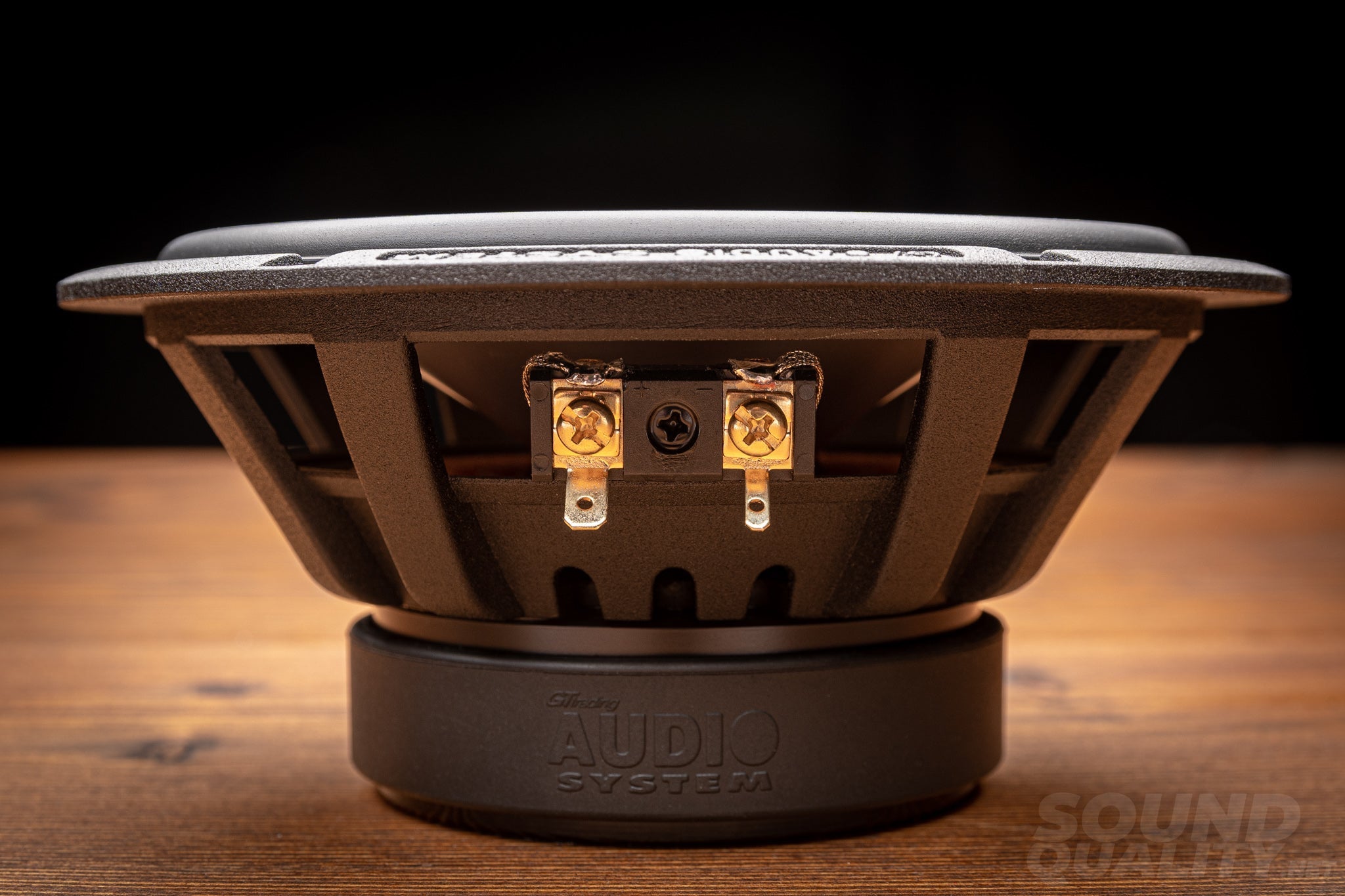

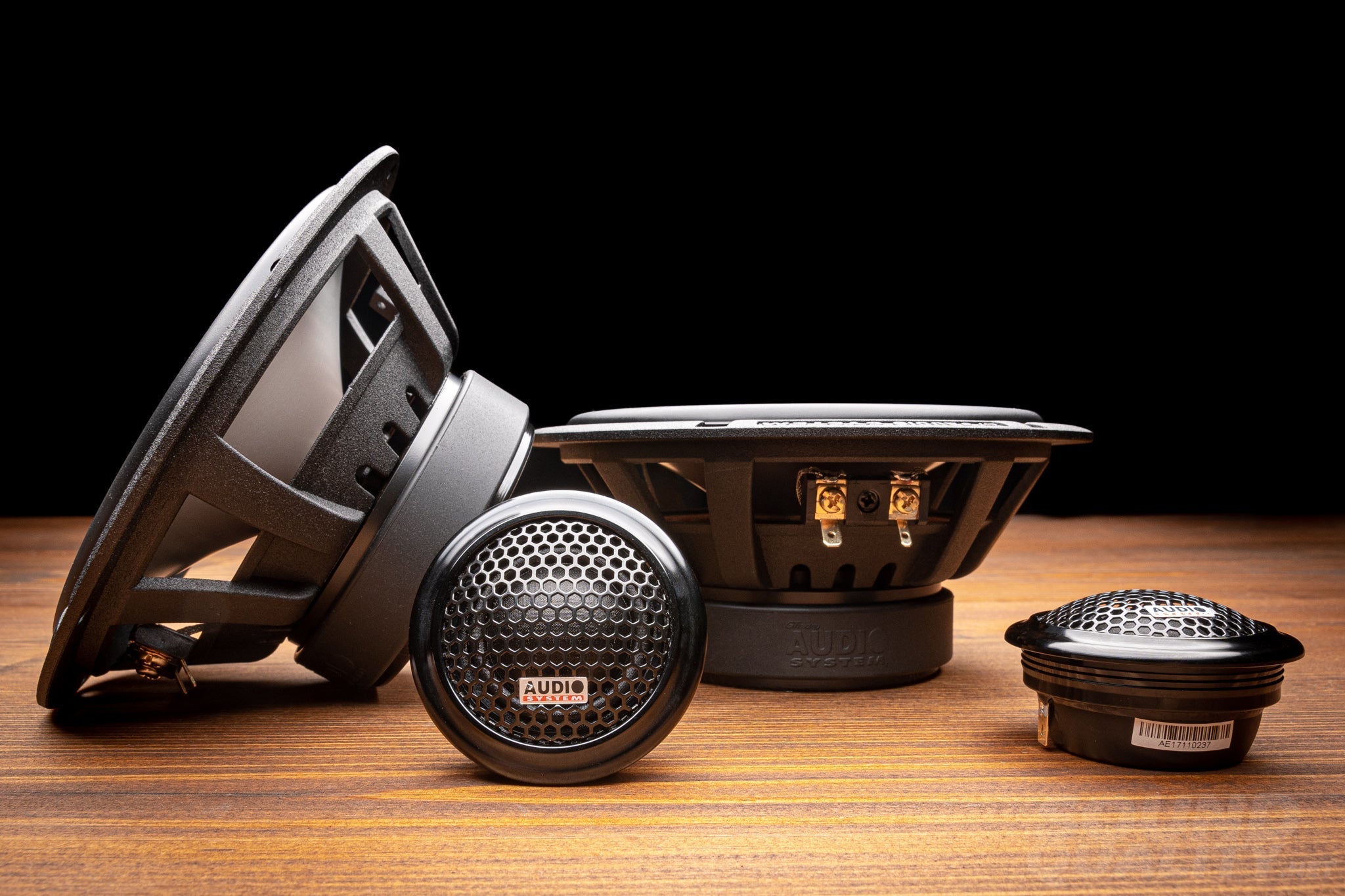

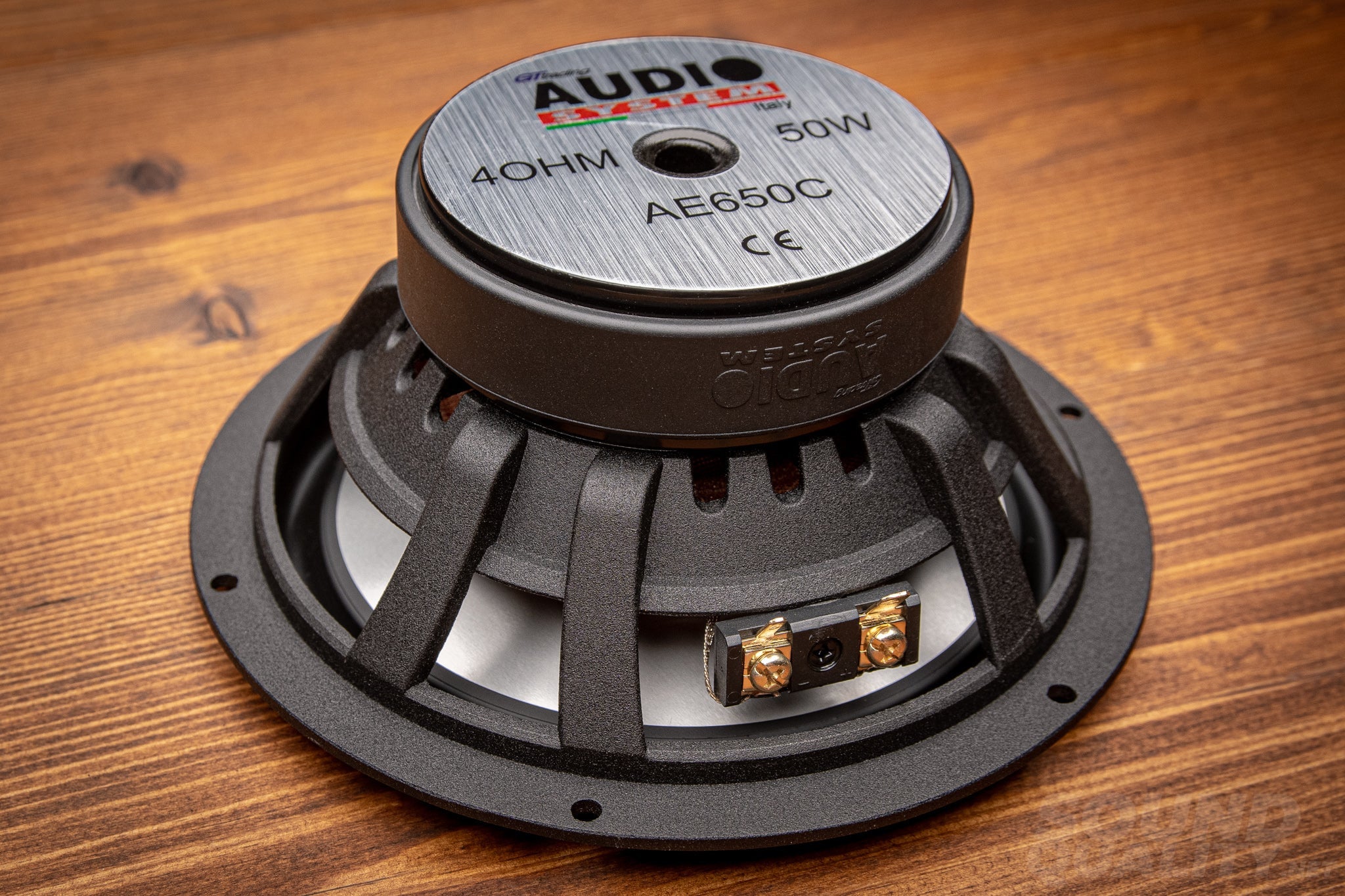

A high-end 2-way component speaker set. Solid die-cast aluminum midbass baskets, aluminum midbass cones with a solid aluminum phase plugs, leads stiched in the spiders, silk soft dome tweeters, solid aluminum tweeter housings. Properly made, sweet sounding.
Manufacturer provided specs:
- Impedance: 4.0 Ohm (both midbass and tweeter)
- Power: 50W midbass, 30W tweeter
- Sensitivity: 1W/1M 89 dB midbass, 90 dB tweeter
- Qms: 4.3
- Qes: 0.59
- Qts: 0.53
- Weight: 1.3 kg midbass, 0.12 kg tweeter
- Mounting depth: 68 mm midbass, 31 mm tweeter
- Mounting diameter: 147 mm midbass, 52.5mm tweeter
Our own DATS measurements:
Right out of the box, no run-in. Vas on the woofer measured with the added mass method with an 18.5g added weight.
Woofer:
- Re: 2.489 Ohm
- Fs: 68.77 Hz
- Qts: 0.713
- Qes: 0.7762
- Qms: 8.754
- Le: 0.05871 mH at 10kHz
- BL: 4.394
- Cms: 0.384 mm/N
- Mms: 13.93 g
- Vas: 10.11 L
- Sensitivity: 93.23 dB 2.83Vrms

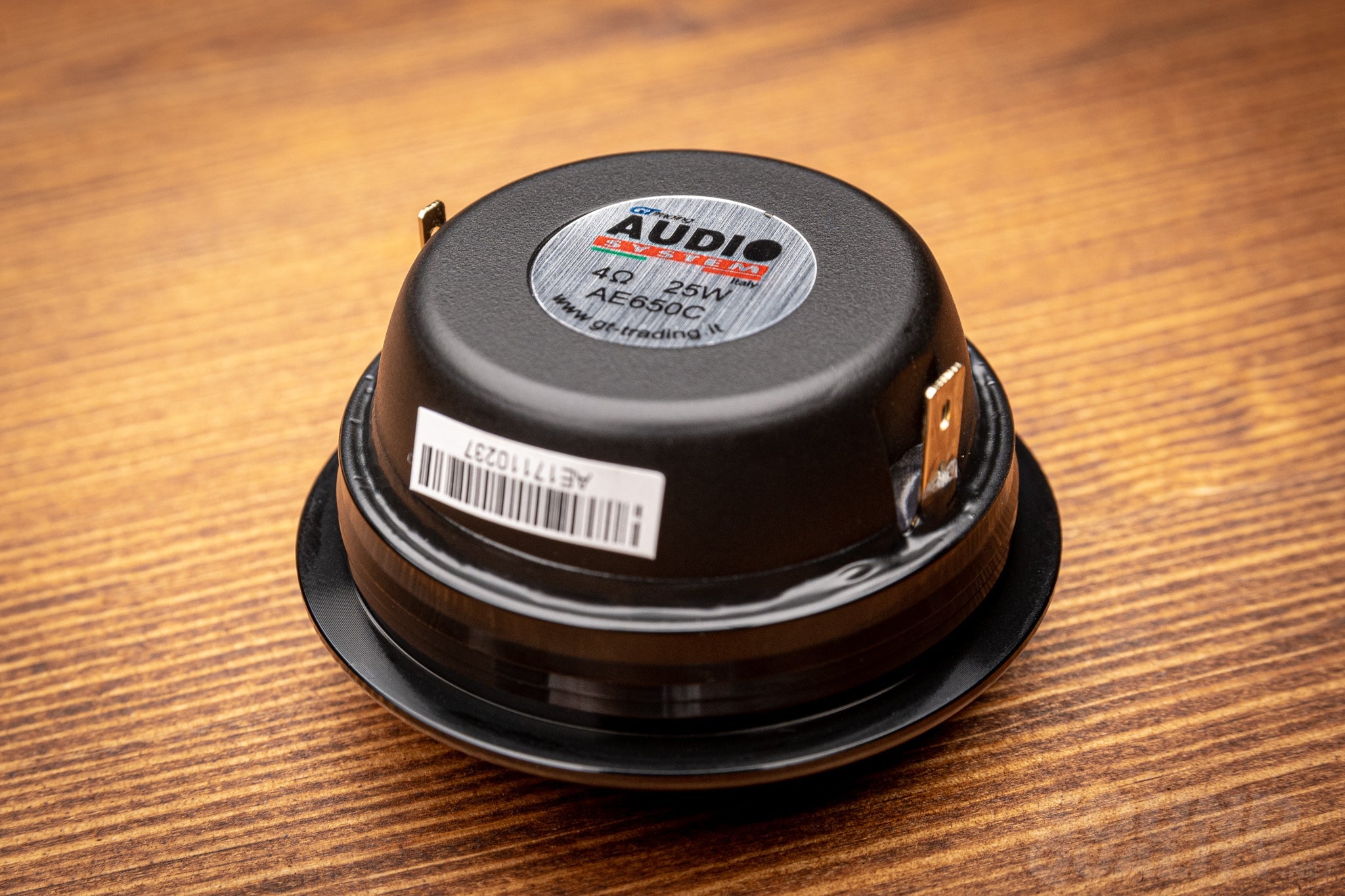

Tweeter:
- Re: 3.308 Ohm
- Fs: 771.2 Hz
- Qts: 0.75
- Qes: 1.602
- Qms: 1.41
- Le: 0.02241 mH at 10kHz

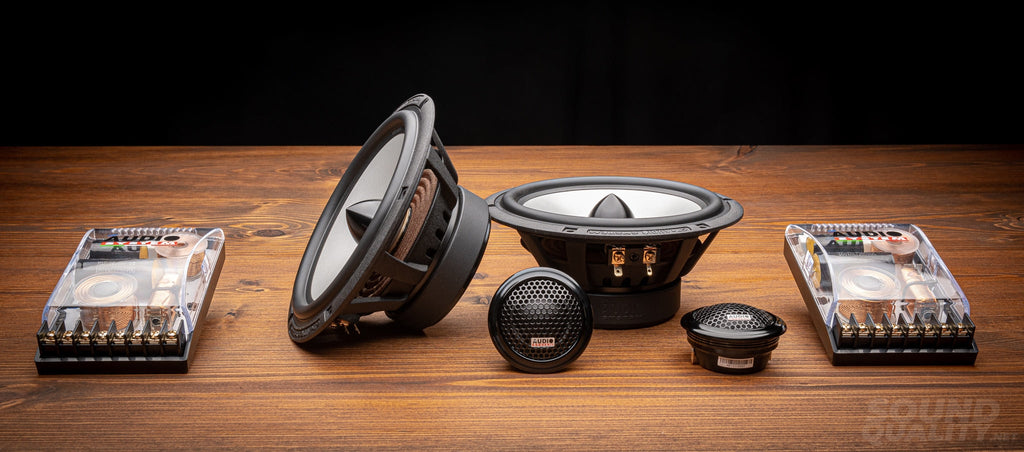

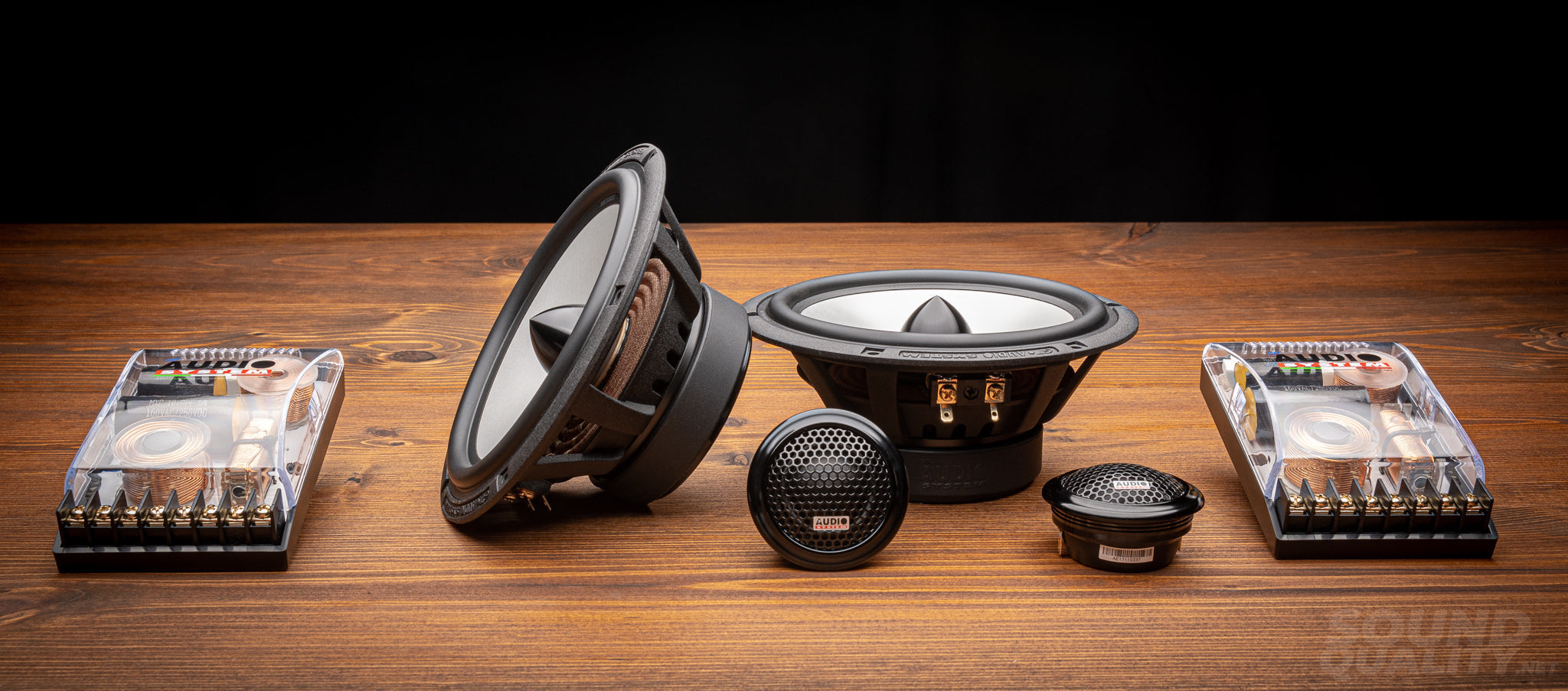

What's included:
- 2x Midbass
- 2x Tweeter

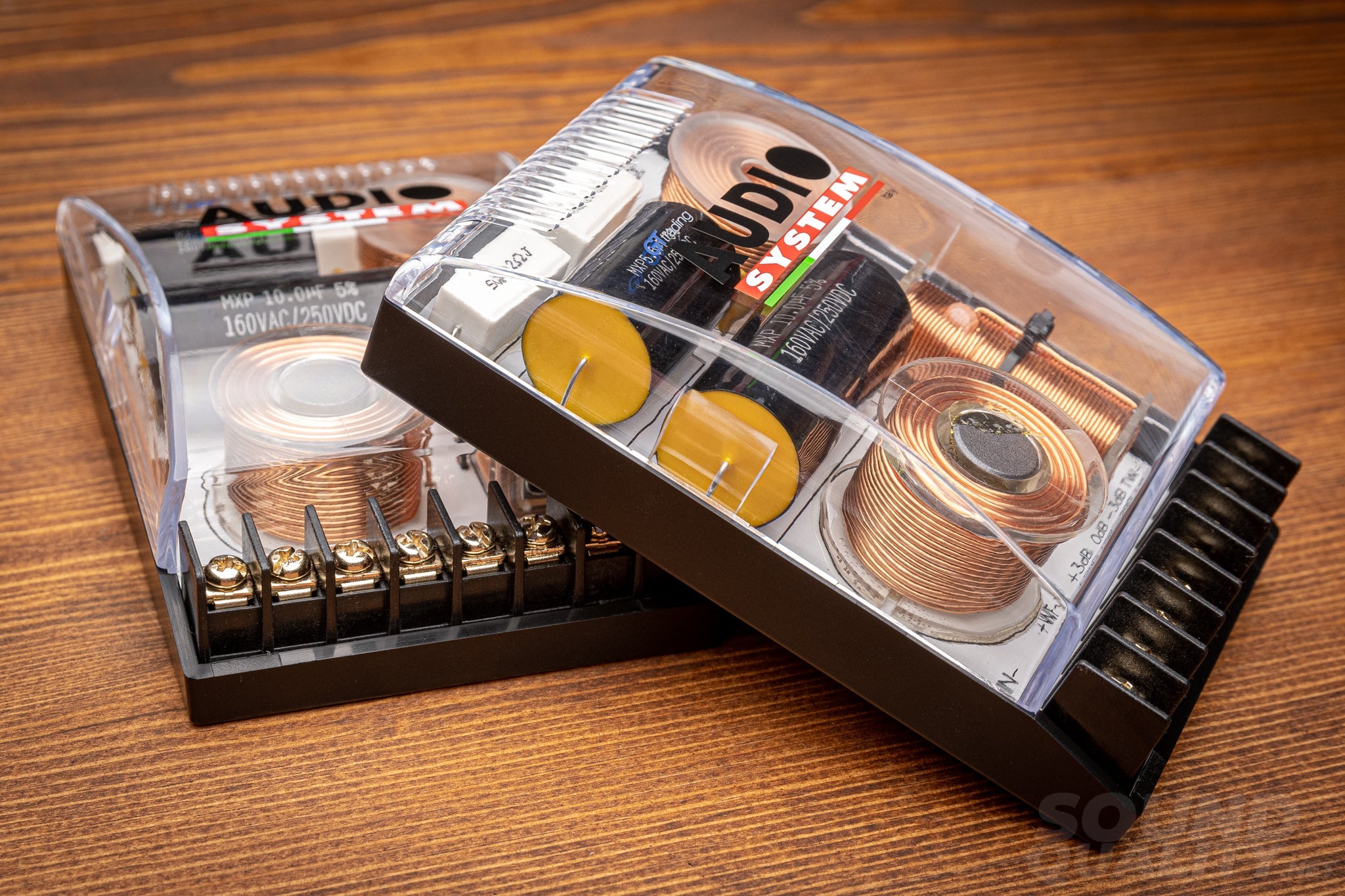

- 2x Crossover
- 1x Instructions
