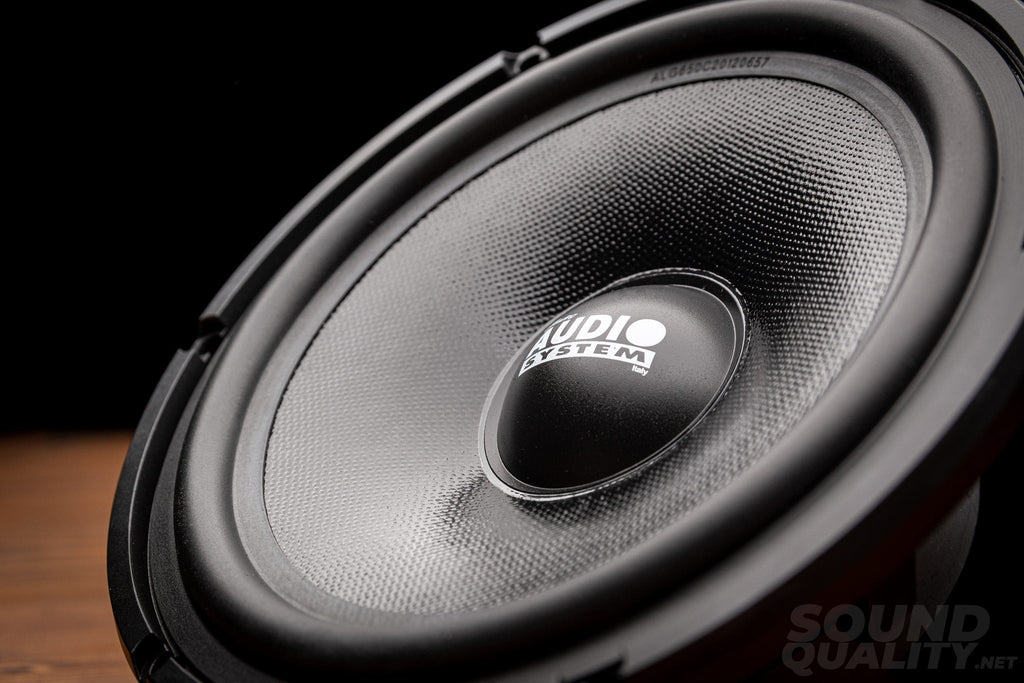

An Audio System version of the STEG MLG65C speaker set. Glass fiber reinforced polycarbonate midbass baskets glass fiber composite midbass cones, Tetoron soft dome tweeters with solid aluminum housings.
Manufacturer provided specs:

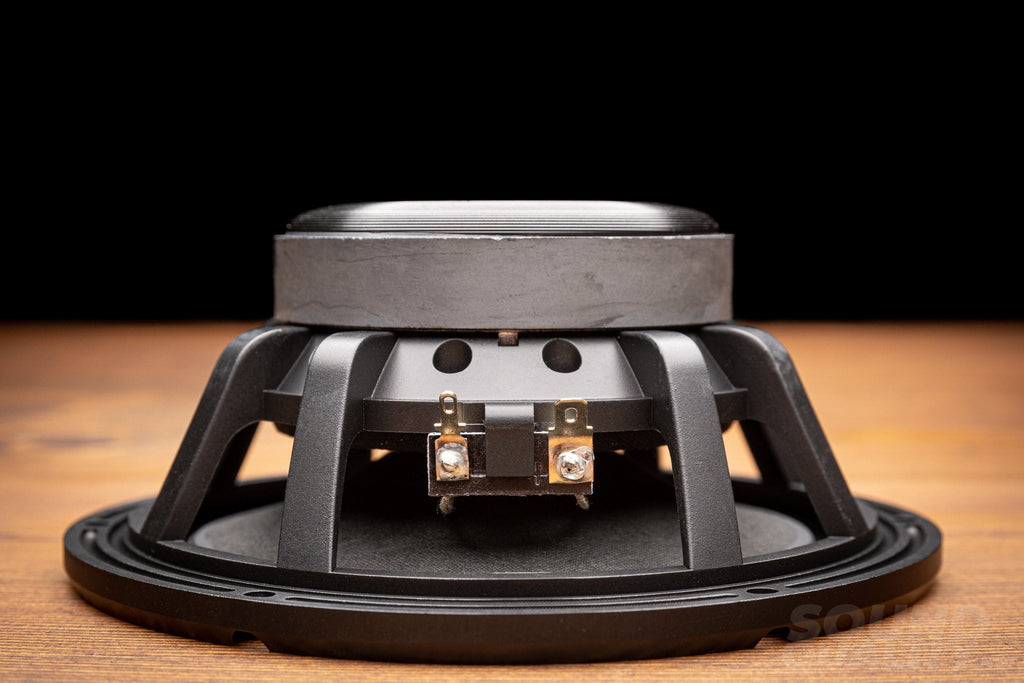

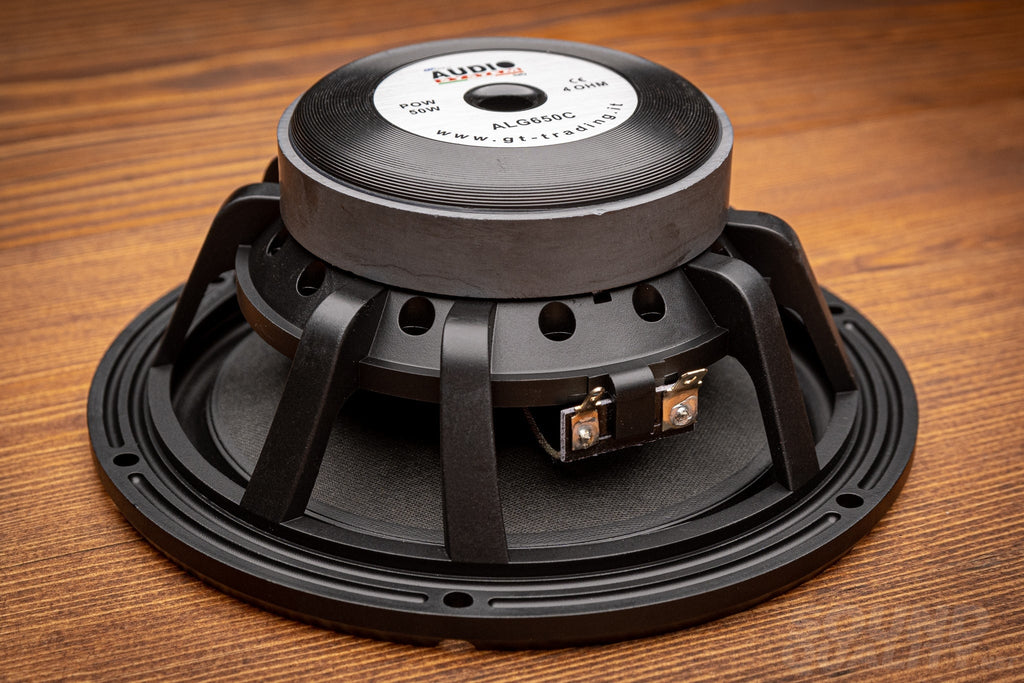

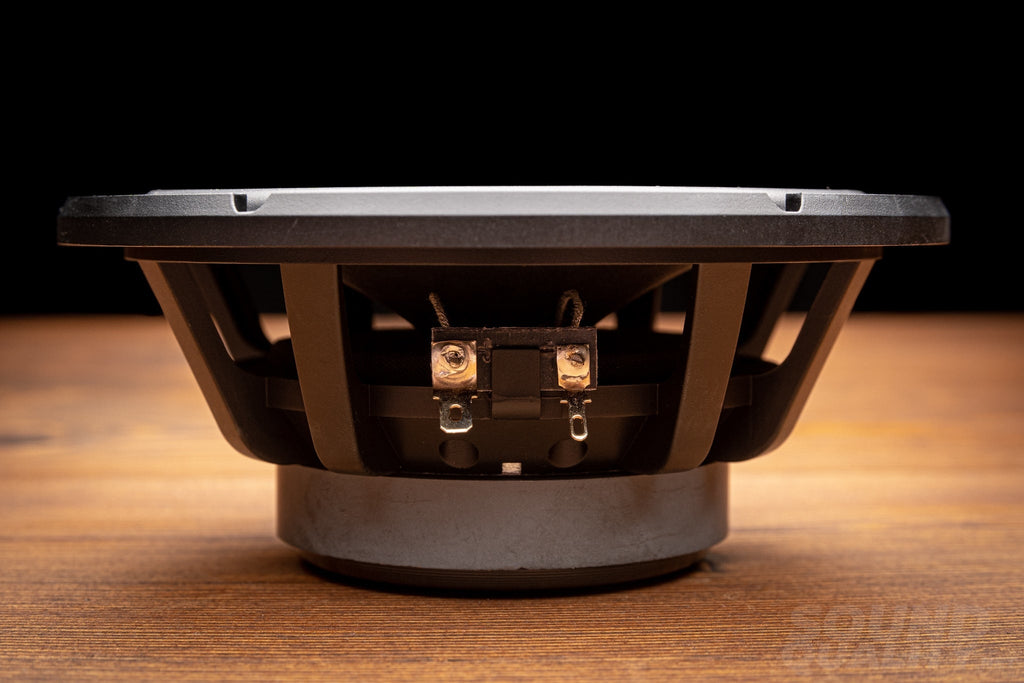

Woofer:
- Voice coil: 25.5 mm
- Rated power input: 60 W
- Frequency response: 65-6500 Hz
- DC Impedance: 3.0 Ohm
- Fs: 65 Hz
- Sensitivity: 88 dB
- SD: 128.6 cm2
- Bl: 4.3 Tm
- Qms: 4.43
- Qes: 0.87
- Qts: 0.72
- Vas: 11 L
- Mms: 12.8 g
- Weight: 0.9 kg
- Mounting depth: 64 mm
- Mounting diameter: 142 mm

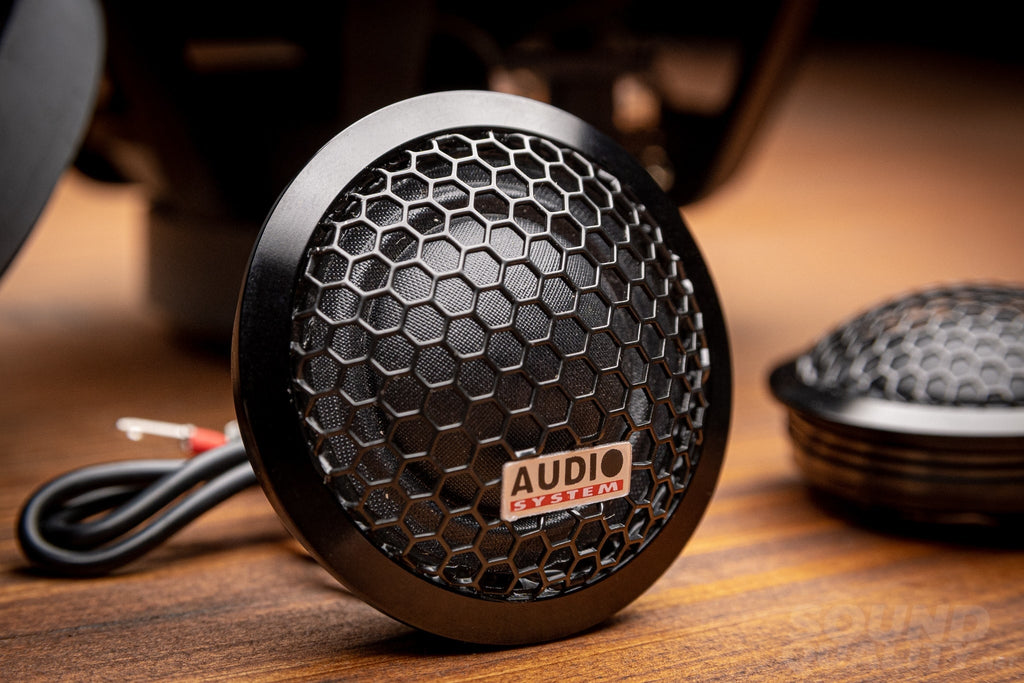

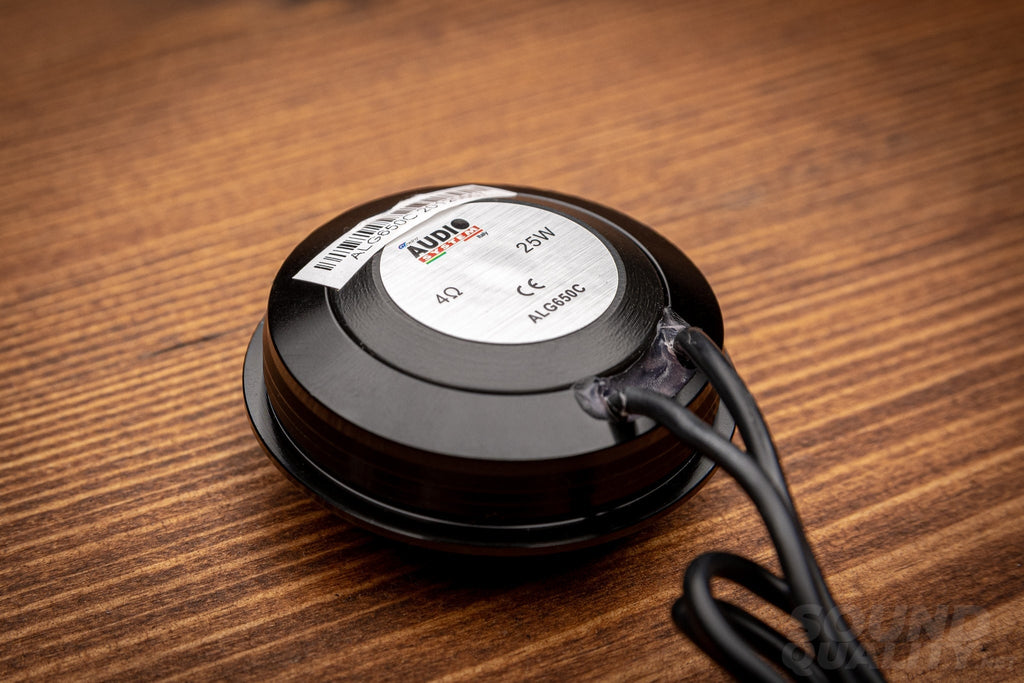

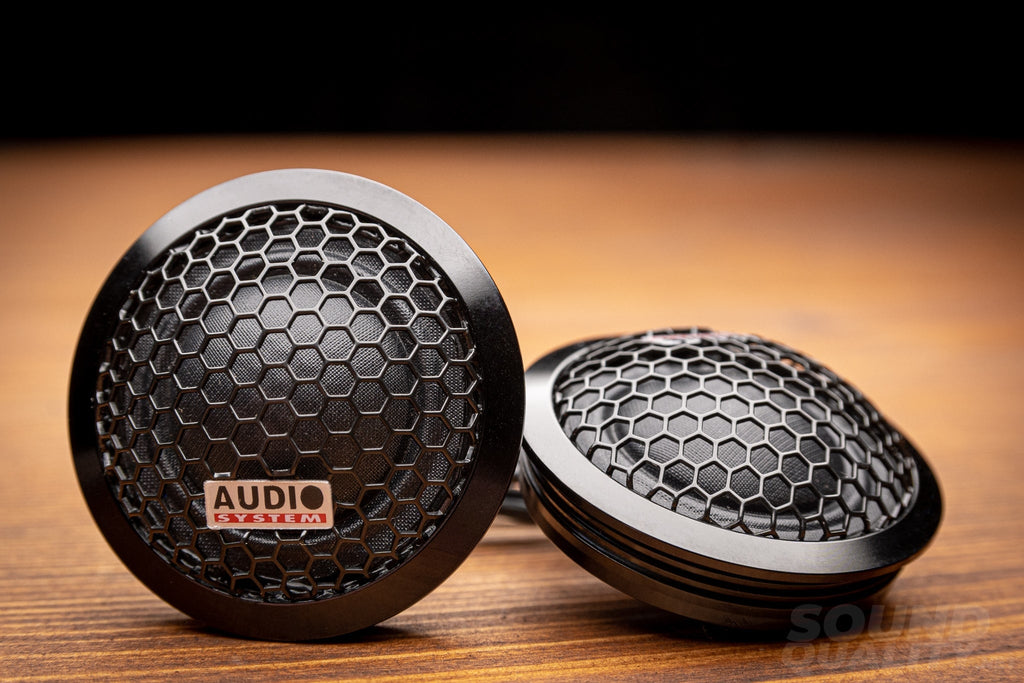

Tweeter:
- Voice coil: 25 mm
- DC Impedance: 3.6 Ohm
- Rated input power: 20 W
- Frequency response: 1300-22000 Hz
- Sensitivity: 90 dB
- Weight: 92 g
- Mounting depth: 17 mm
- Mounting diameter: 47 mm
Our own DATS measurements:
Right out of the box, no run-in. Vas measured with the added mass method with an 18.5g added weight.

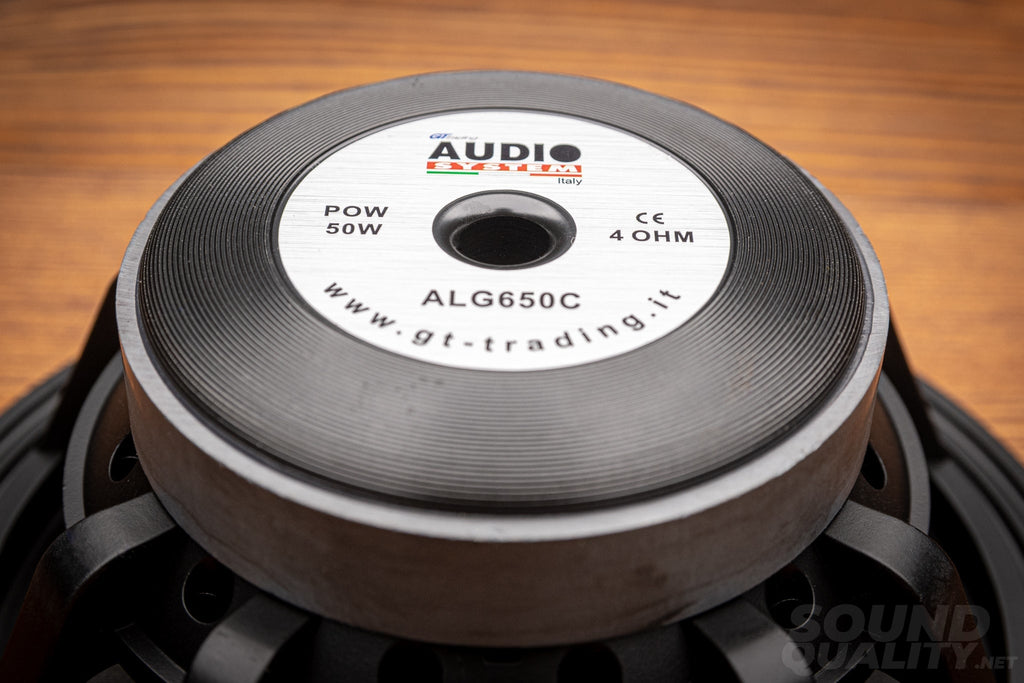

Woofer:
- Re: 2.588 Ohm
- Fs: 60.36 Hz
- Qts: 0.4881
- Qes: 0.5519
- Qms: 4.22
- Le: 0.1403 mH at 10kHz
- BL: 4.718
- Cms: 0.555 mm/N
- Mms: 12.52 g
- Vas: 12.52 L
- Sensitivity: 93.77 dB 2.83Vrms

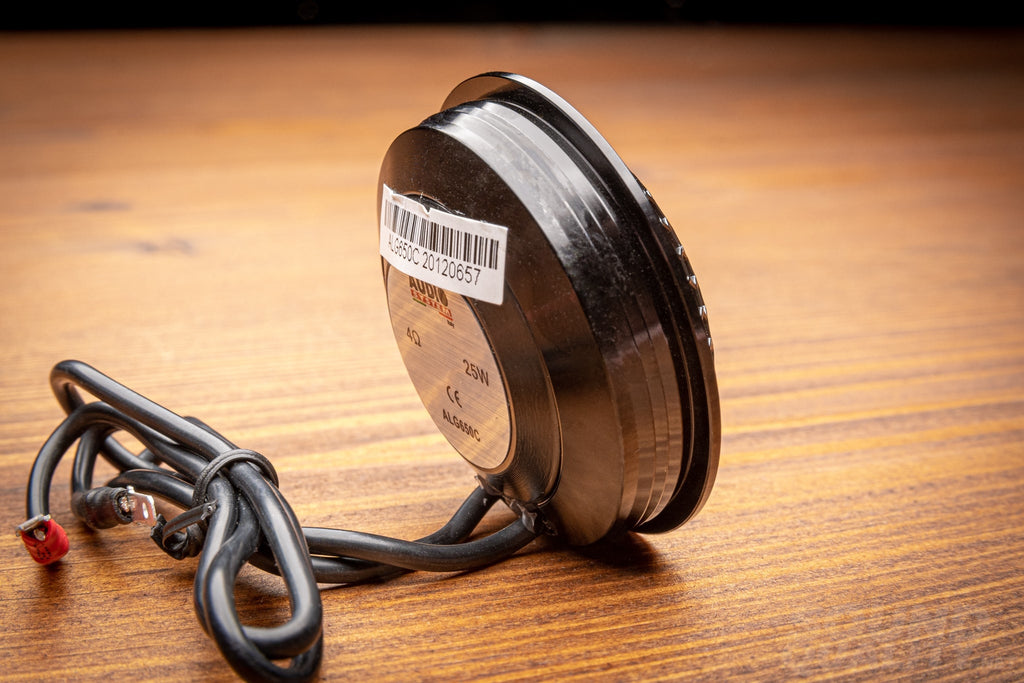

Tweeter:
- Re: 3.292 Ohm
- Fs: 1100 Hz
- Qts: 1.141
- Qes: 1.828
- Qms: 3.032
- Le: 0.03542 mH at 10kHz

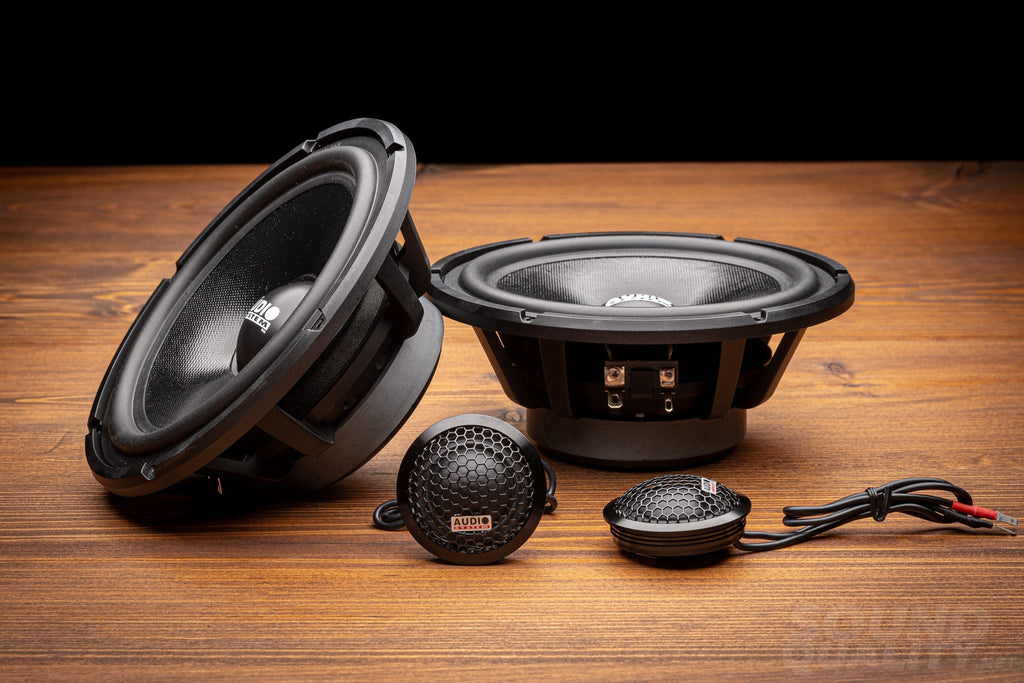

What's included:
- 2x Midbass
- 2x Tweeter

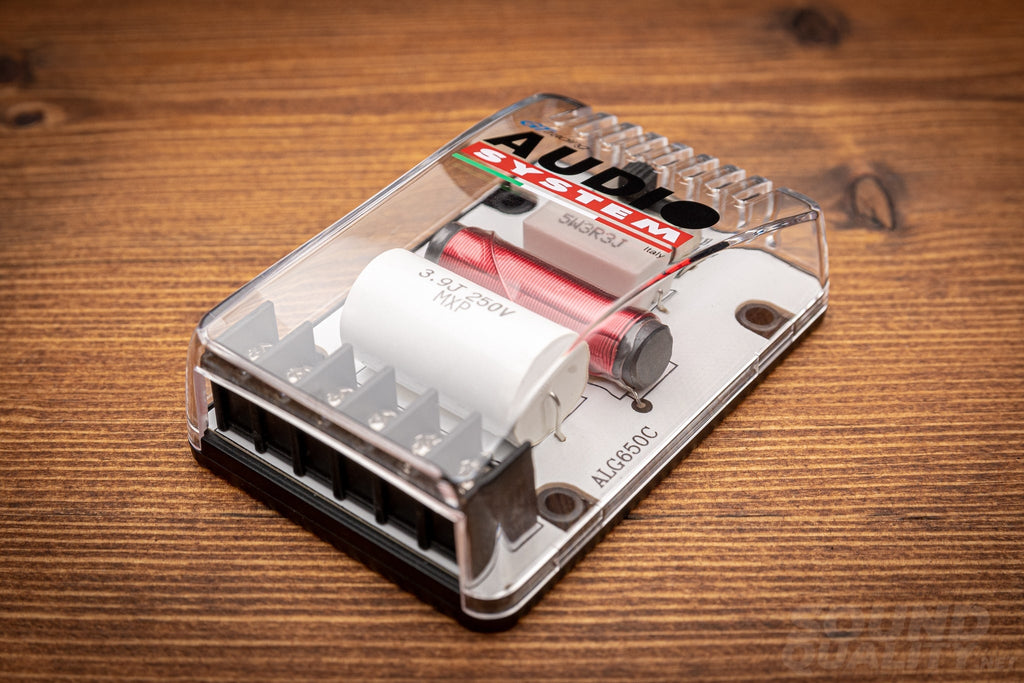

- 2x Crossover
- 1x Instructions
