Audio System AM650C 6.5" component set

Regular price
€119.00
Sale price
€119.00
Regular price
Sold out
Unit price
per

A budget component set that can still hold its own against the big boys. Can be used as main 2-way for low budget SQ setups or as rear fill for any setup where you want to have a back-up preset on the DSP for rear passengers, kids, etc. No hassle, barebones speaker set positioned just above the mainstream.

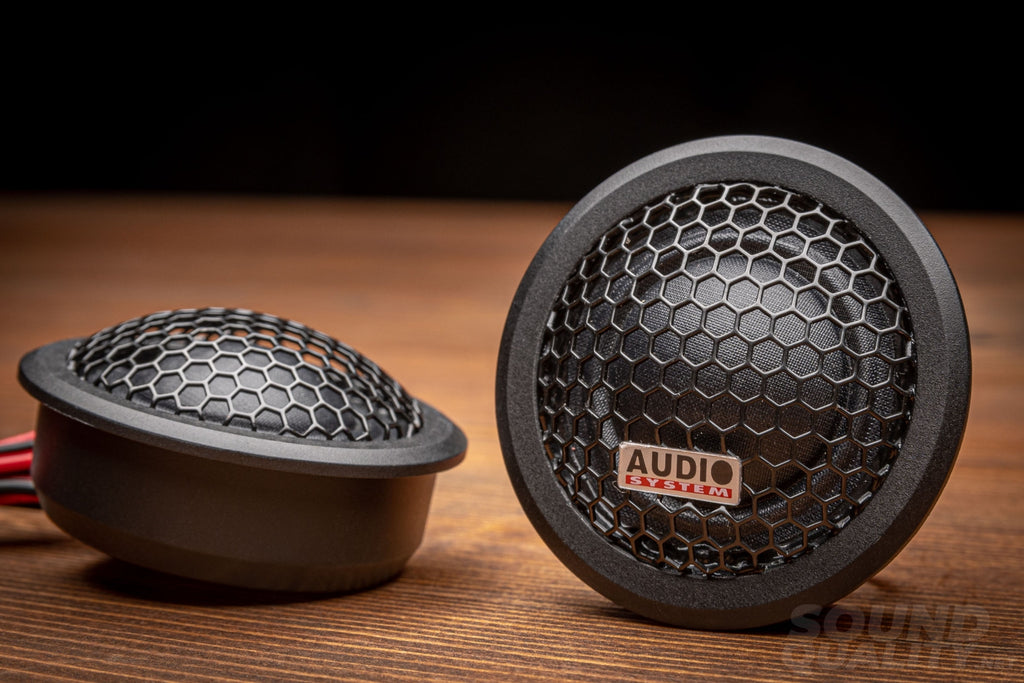

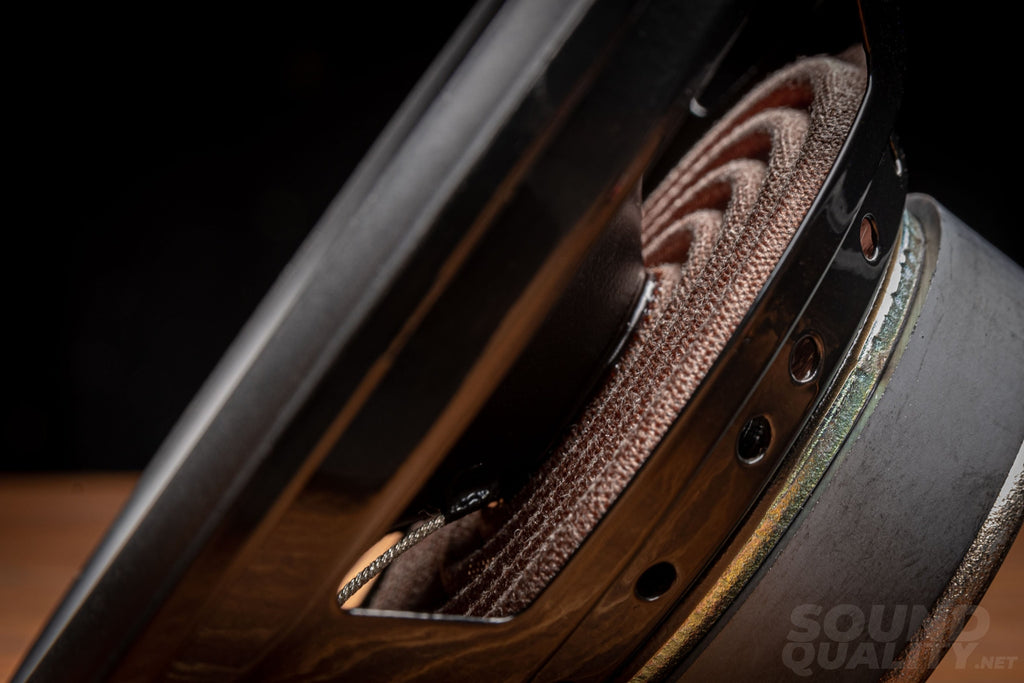

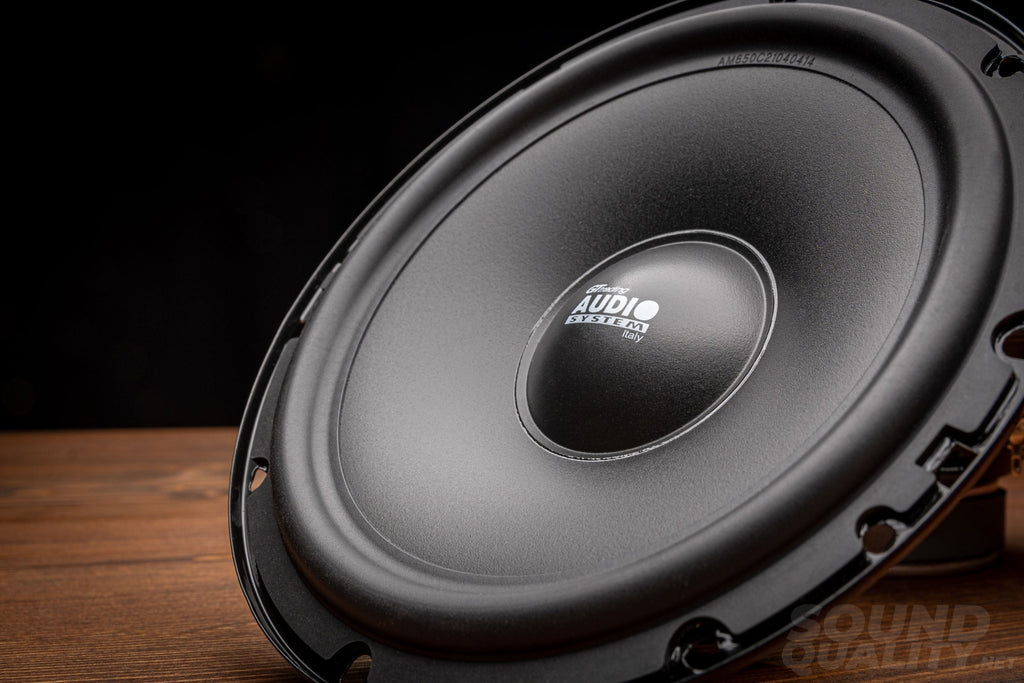

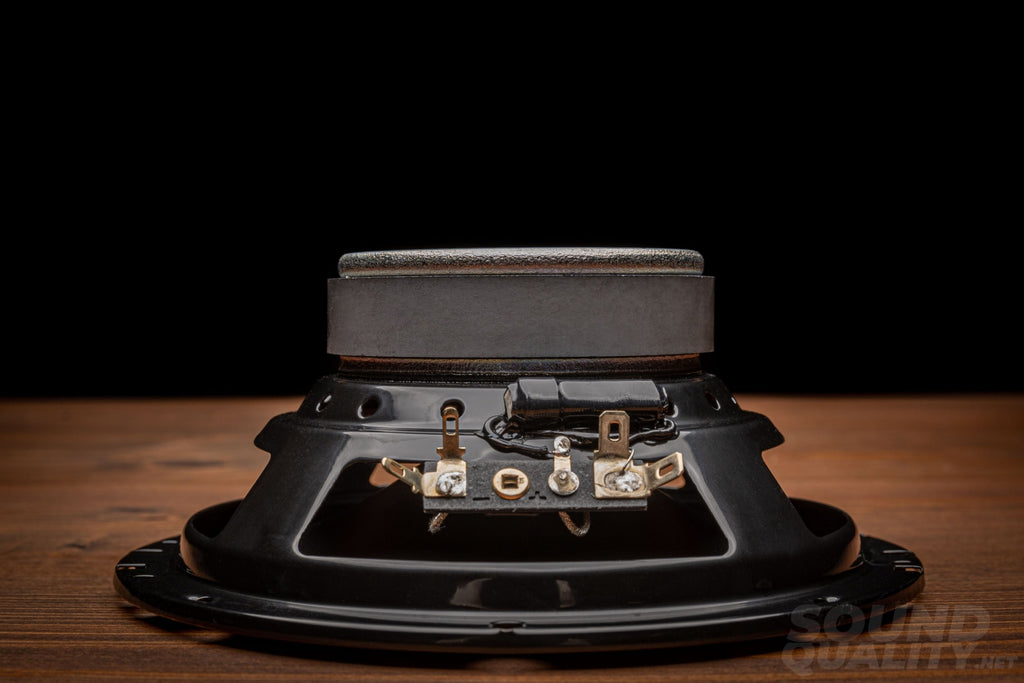

Composite cones, stamped baskets, double spade terminals, silk dome tweeters with plastic pods.

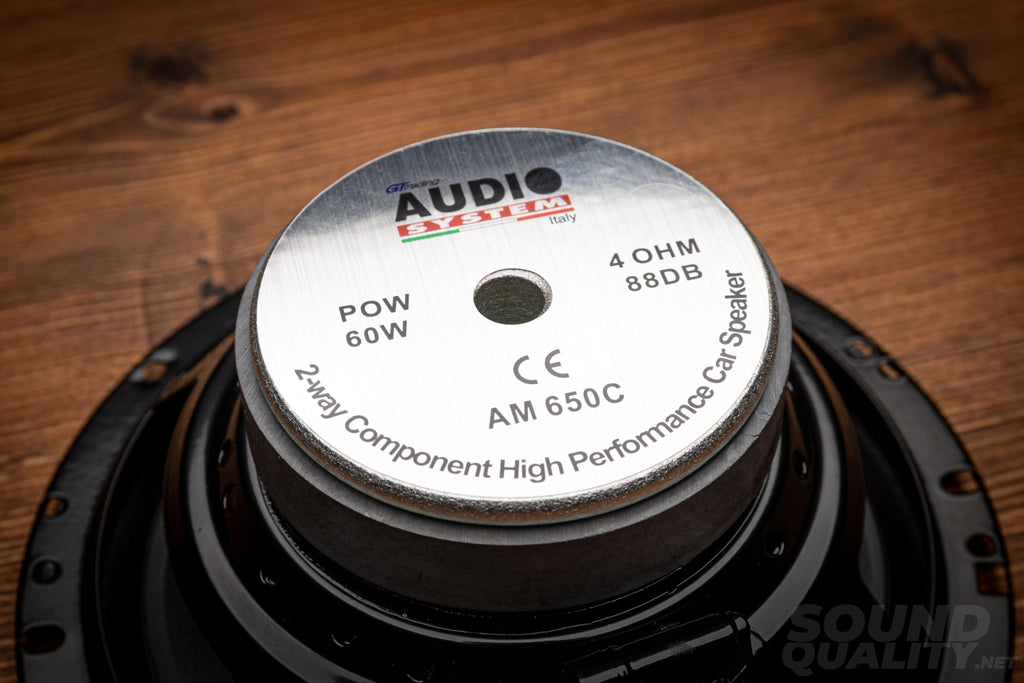

Manufacturer provided specs:

  • Nominal impedance: 4 Ohm
  • Power handling: 60W
  • Sensitivity: 88 dB
  • Frequency response: 65-20000 Hz
  • Voice coil diameter: 25mm woofer, 25mm tweeter
  • Voice coil wire: 25.5mm copper
  • Magnet system: High grade ferrite for the woofer, neodymium for the tweeter
  • Mounting diameter: 143mm woofer, 48.5mm tweeter
  • Mounting depth: 64mm woofer, 17mm tweeter

Our own DATS measurements:

Right out of the box, no run-in. Vas of the woofer measured with the added mass method with an 18.5g added weight.

Woofer:

  • Re: 3.196 Ohm
  • Fs: 70.82 Hz
  • Qts: 1.092
  • Qes: 1.344
  • Qms: 5.828
  • Le: 0.2842 mH at 10kHz
  • BL: 4.028
  • Cms: 0.329 mm/N
  • Mms: 15.33 g
  • Vas: 7.902 L
  • Sensitivity: 89.08 dB 2.83Vrms
Tweeter:

  • Re: 3.322 Ohm
  • Fs: 1215 Hz
  • Qts: 1.072
  • Qes: 1.764
  • Qms: 2.732
  • Le: 0.03029 mH at 10kHz

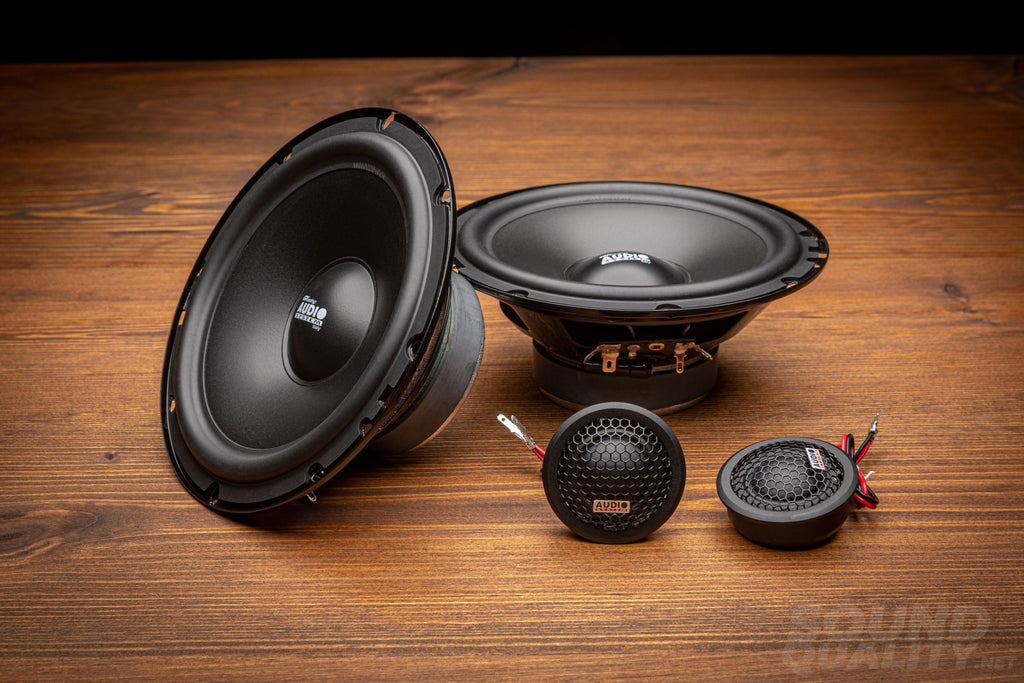

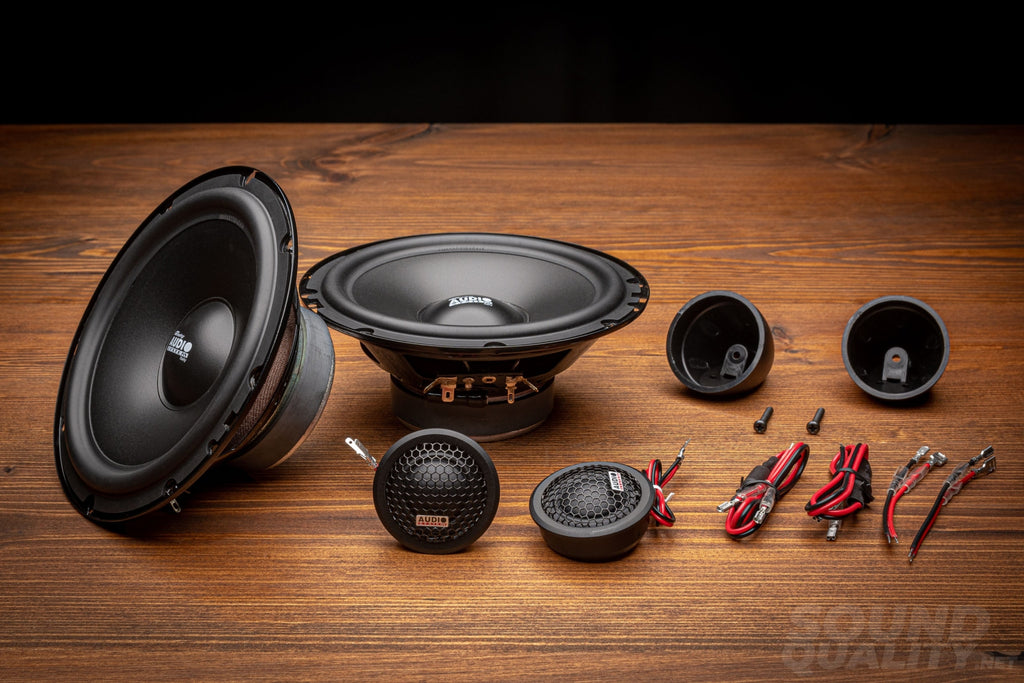

What's included:

  • 2x Woofers
  • 2x Tweeters
  • 2x High-pass tweeter wires
  • 2x Straight spade wires
  • 2x Angled tweeter pods
