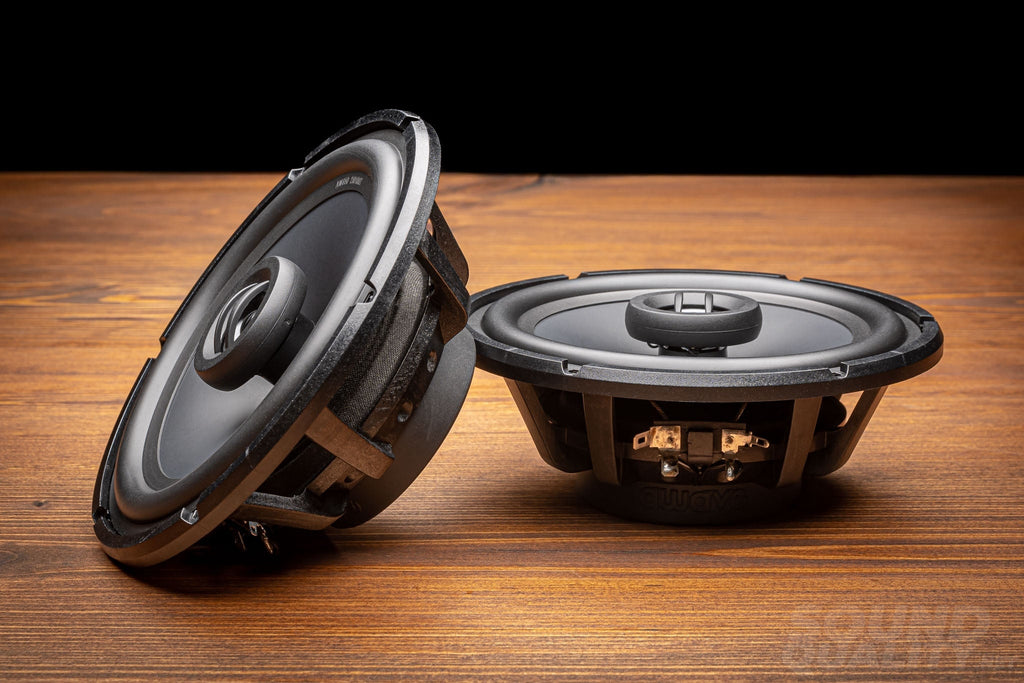

Entry level coaxial speaker pair. Rear fill, rear door, rear shelf point sources for budget friendly additions to an SQ system.
Manufacturer provided specs:
- Rated power input: 50 W
- Frequency response: 65-20000 Hz
- DC Impedance: 4.0 Ohm
- Sensitivity: 88 dB
- Qts: 0.88
- BL: 3.13T
- VAS: 18.31 L
- Voice coil: 25.5 woover, 13.28 tweeter
- Composite paper cone
- Mounting diameter: 143 mm
Our own DATS measurements:
Right out of the box, no run-in.
- Re: 2.83 Ohm
- Fs: 74.96 Hz
- Qts: 1.138
- Qes: 1.543
- Qms: 4.336
- BL: 3.235
- Cms: 0.372 mm/N
- Mms: 12.11 g
- Vas: 8.387 L
- Sensitivity: 90 dB 2.83Vrms
What's included:
- 2x Coaxial speakers
- 1x Instructions
