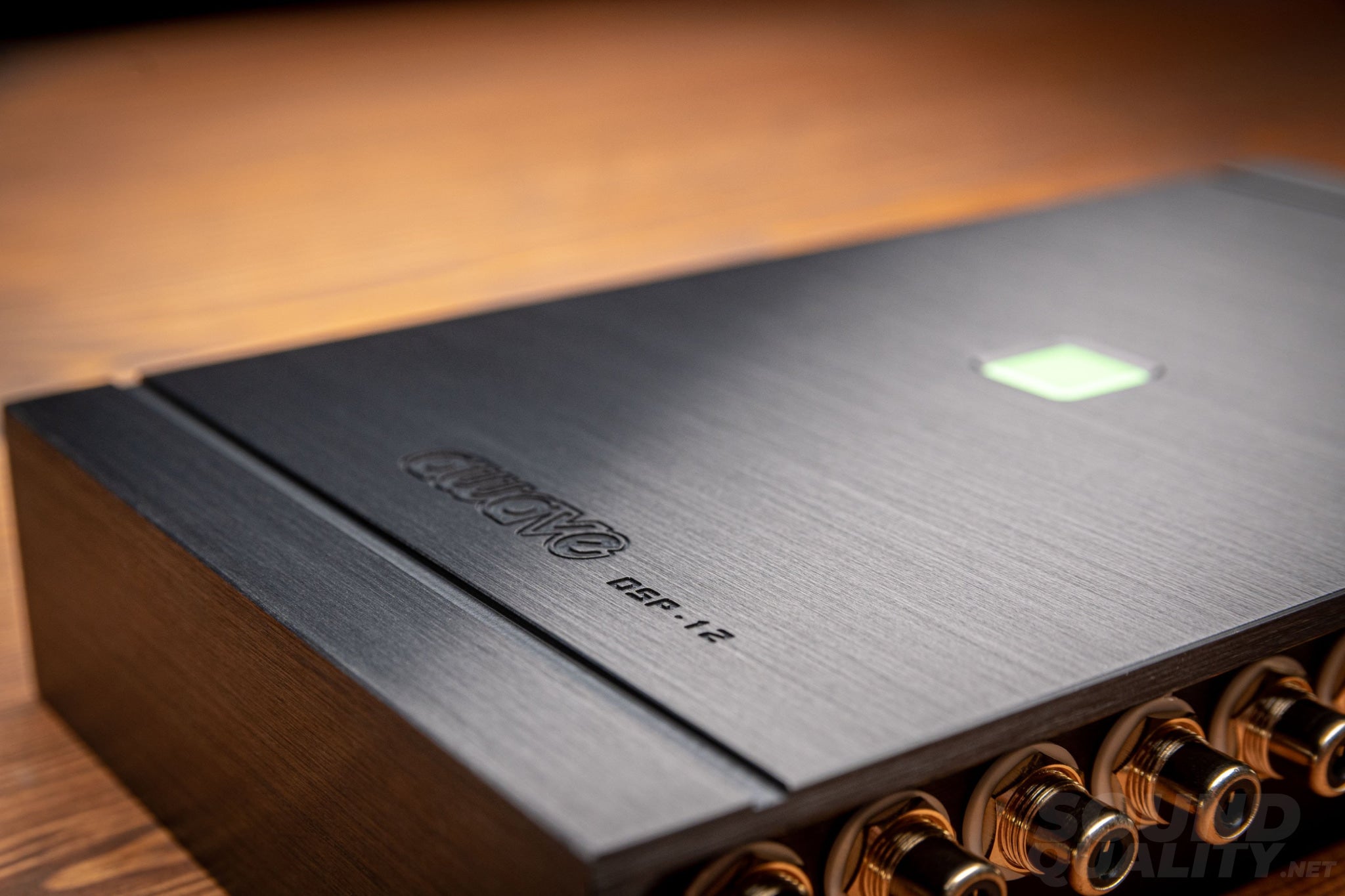

A standalone DSP for extended multichannel systems, having 12 output RCA channels and 6 RCA inputs, 12 high-level inputs, coax SPDIF input, optical TOSLINK input, 3.5mm jack AUX input, Bluetooth AptX HD input, digital remote control for volume, sub level, preset selection, input selection, mute trigger.
The DSP supports the following on every output channel:
- High pass, low pass and band pass crossovers (Linkwitz Riley, Bessel and Butterworth) up to 48 dB/oct
- 31 band fully parametric EQ with +/-15 dB correction
- Time delay up to 15 ms for time alignment, selectable in ms, cm or inches, optional linking of channel pairs
- Phase phase switching between 0 and 180 degrees
- Level correction from 0 to -40 dB, optional linking of channel pairs
- Freely selectable mixing of all input channels to every output channel with the option of phase inversion of single input channels, allowing the set up of a differential rear fill
- Internal pink noise generator to test each individual output channel
Configuration software for Microsoft Windows: DOWNLOAD HERE
Manufacturer provided specs:
- Power supply voltage: 9-15 VDC
- Idling current: 0.5A
- Switched off without DRC: 5mA
- Switched off with DRC: 4mA
- Remote IN voltage: 6-15 VDC
- Remote OUT voltage: 12 VDC (130mA)
- Output signal THD @ 1kHz, 1V RMS: 0.0004%
- Bandwidth @ -3 dB: 20Hz-22kHz
- Master input: 98 dBA
- Aux input: 96 dBA
- Channel separation @ 1kHz: 90 dB
- Input sensitivity (high-level in): 2-15V RMS, 10 kOhm
- Input sensitivity (AUX in): 0.2-5V RMS, 22kOhm
- Max output level RMS @ 0.1 THD: 4V

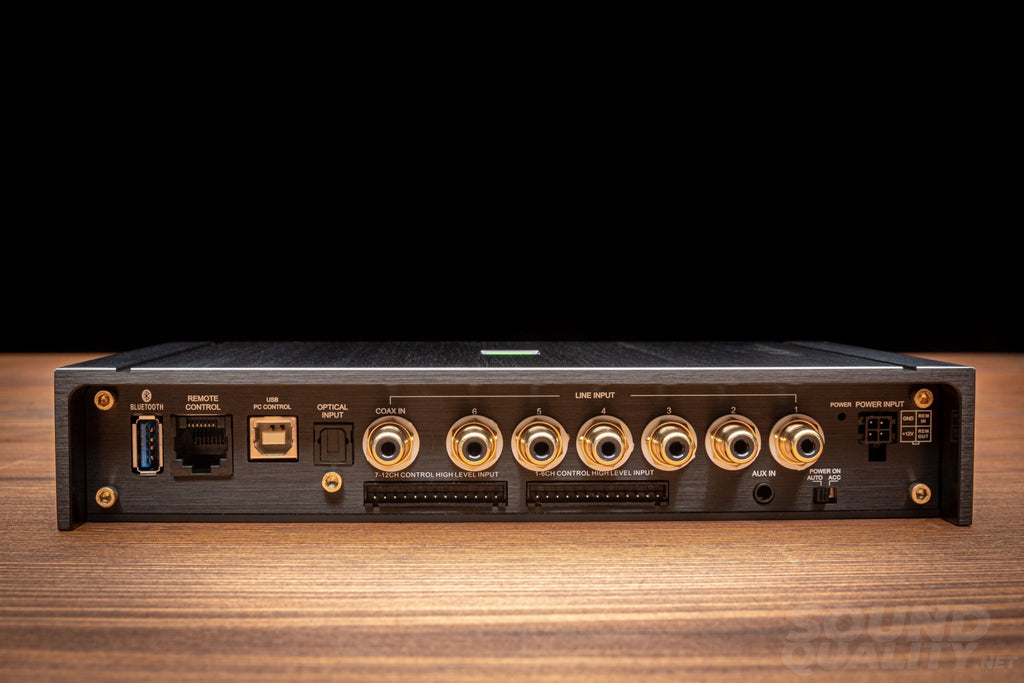

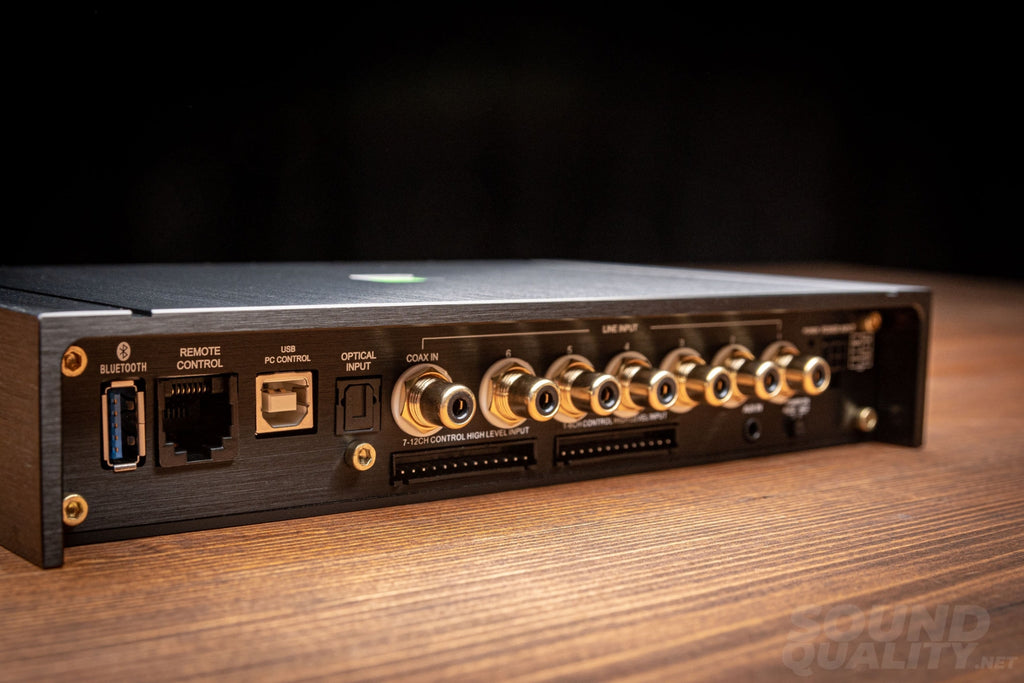

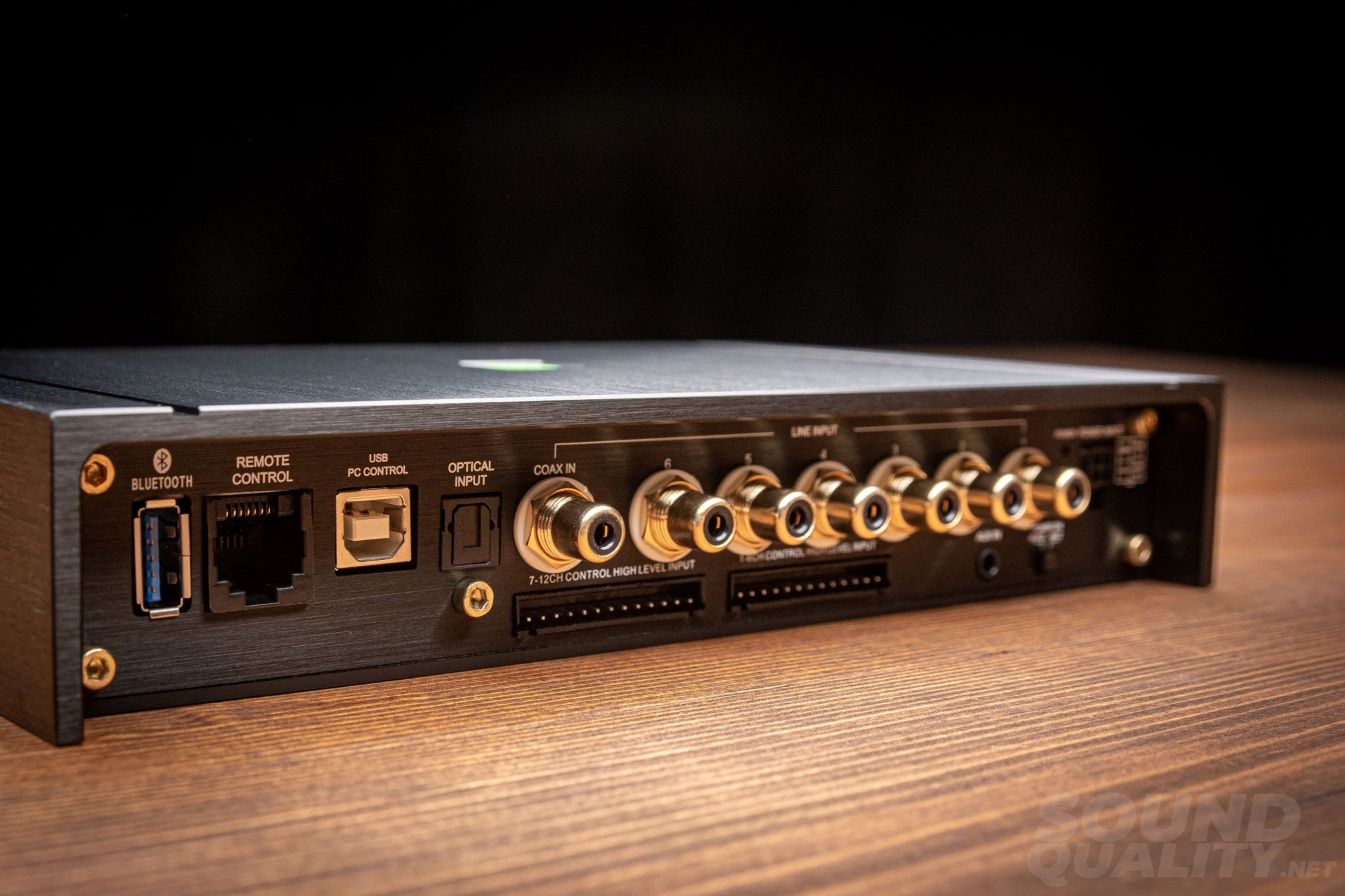

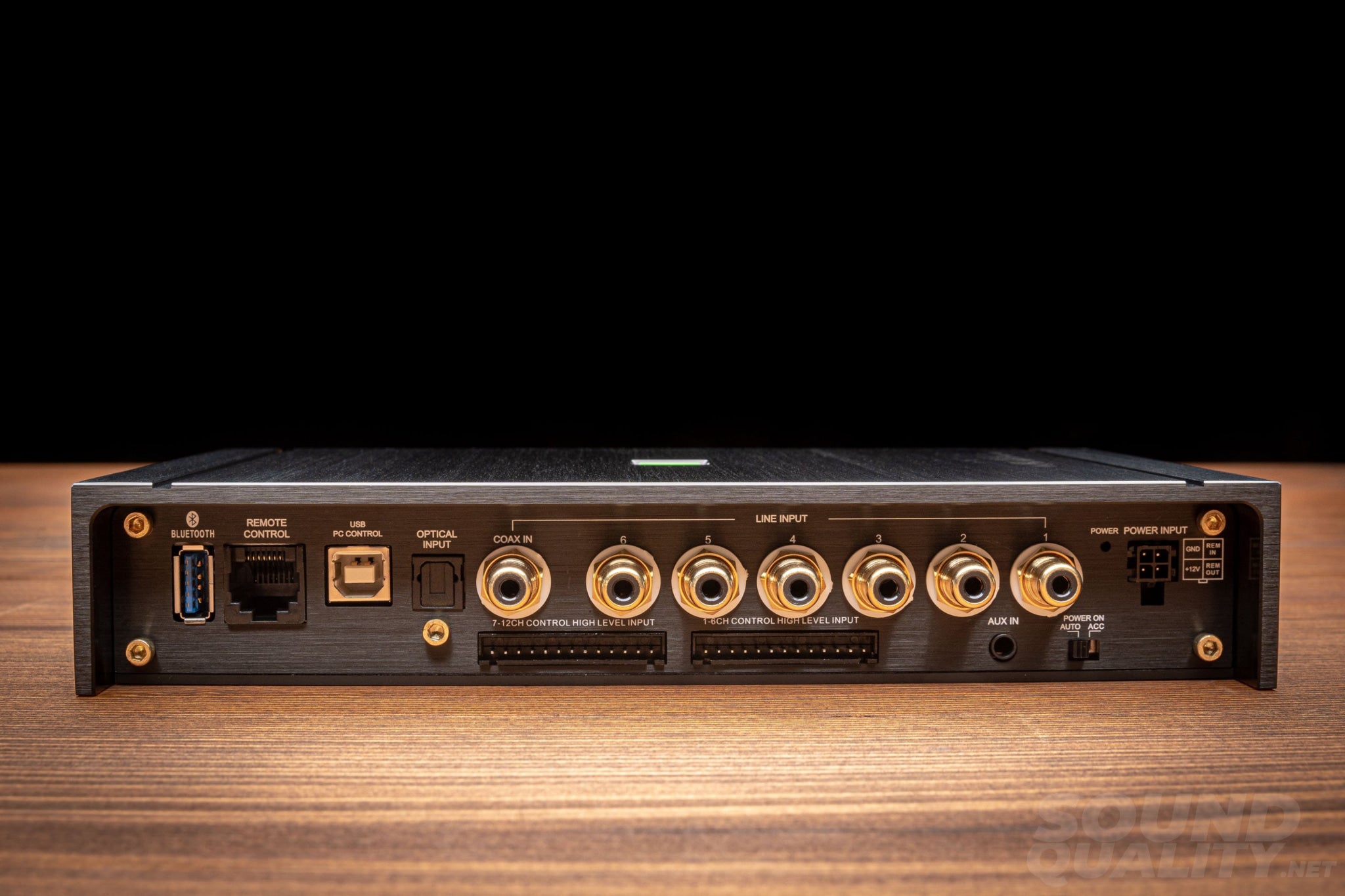

- Inputs: 6xRCA analogue, 1x RCA SPDIF coax, 1x 3.5mm aux, 1x TOSLINK SPDIF, 12x high-level, Bluetooth 5.0 AptX HD module

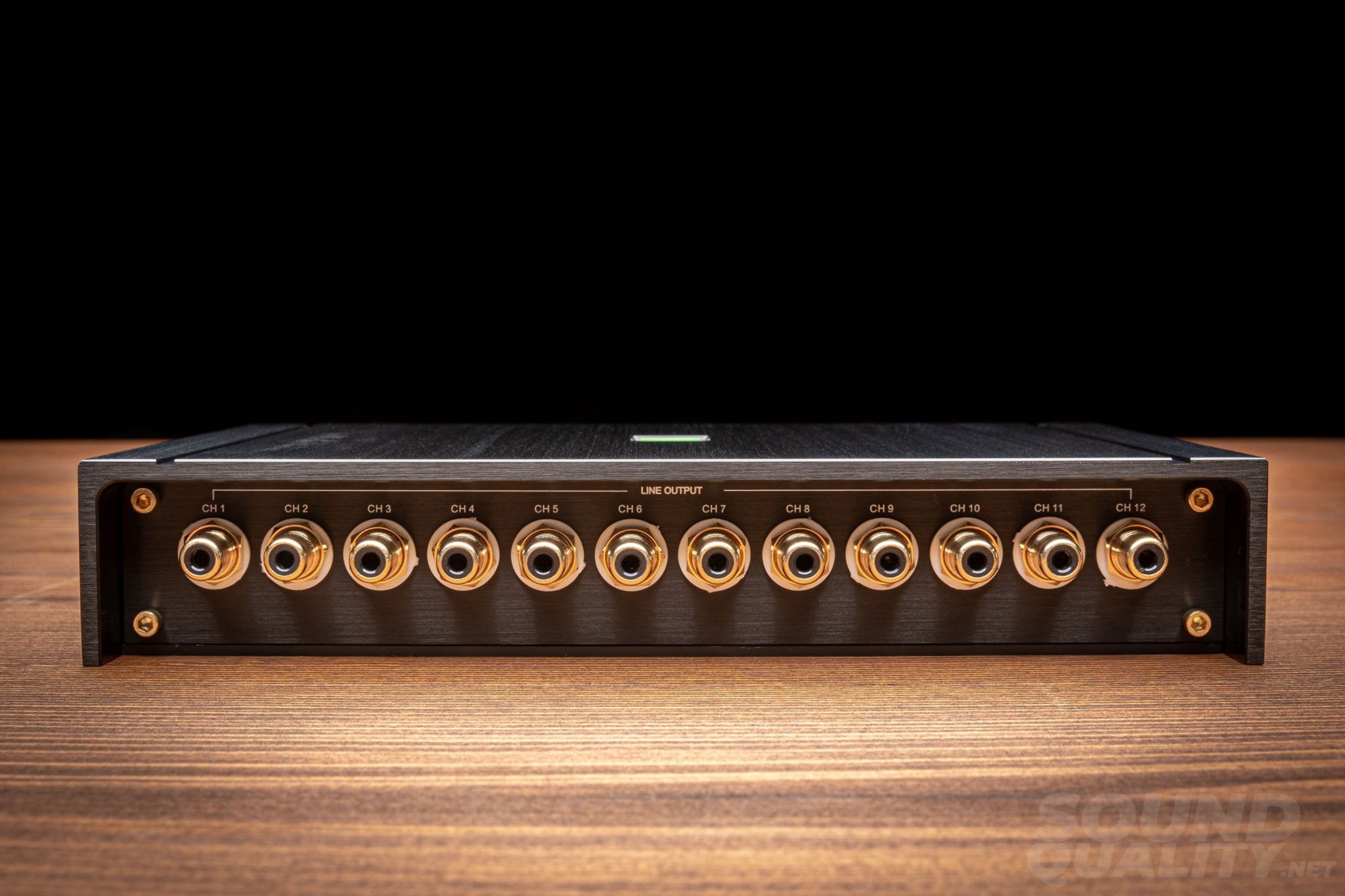

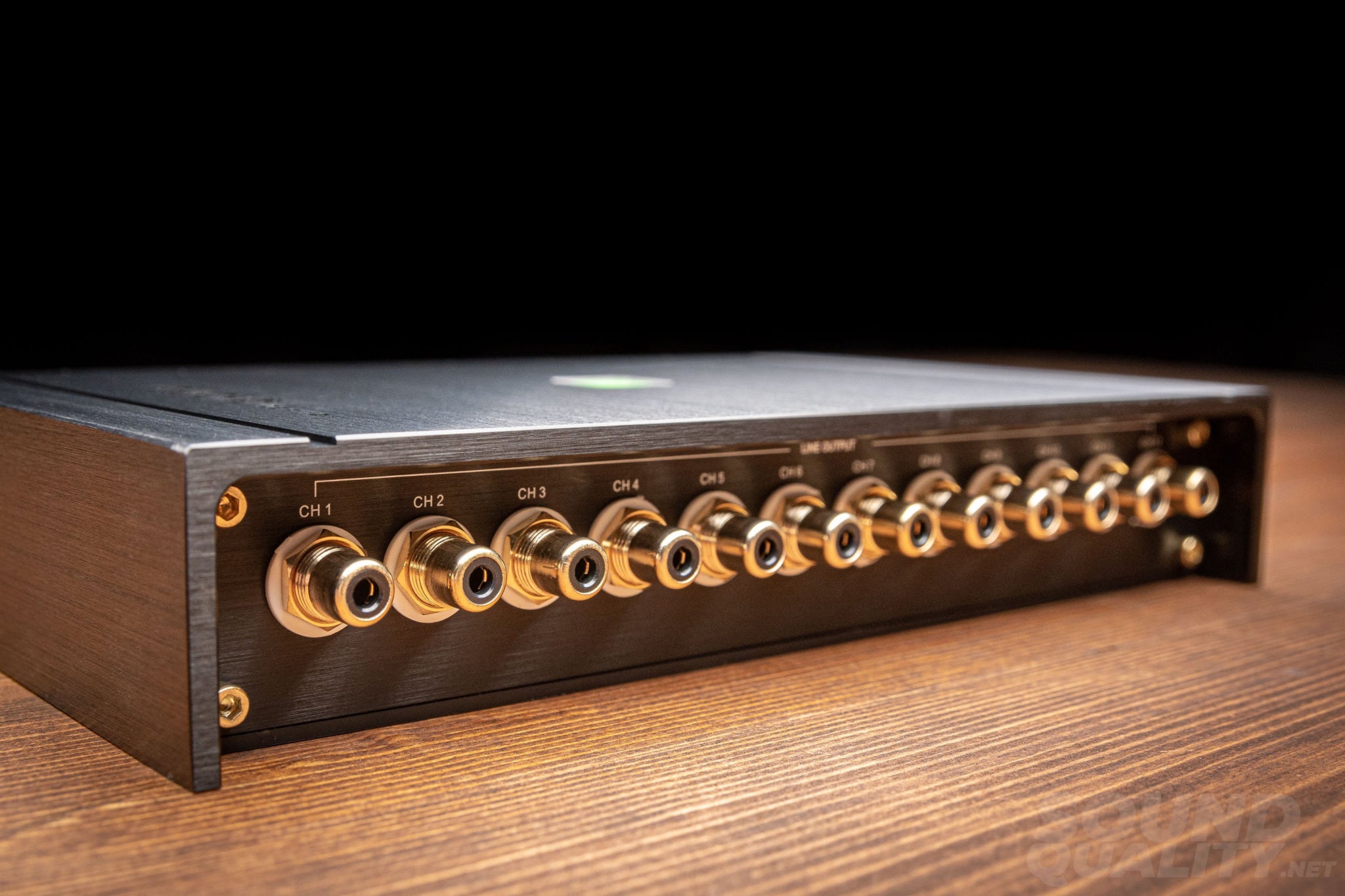

- Outputs: 12xRCA analogue
- Control connections: 1x USB 1.1/2.0, wired remote (DRC)
- 8 full setup presets
- Auto on via high level signal detect or remote input

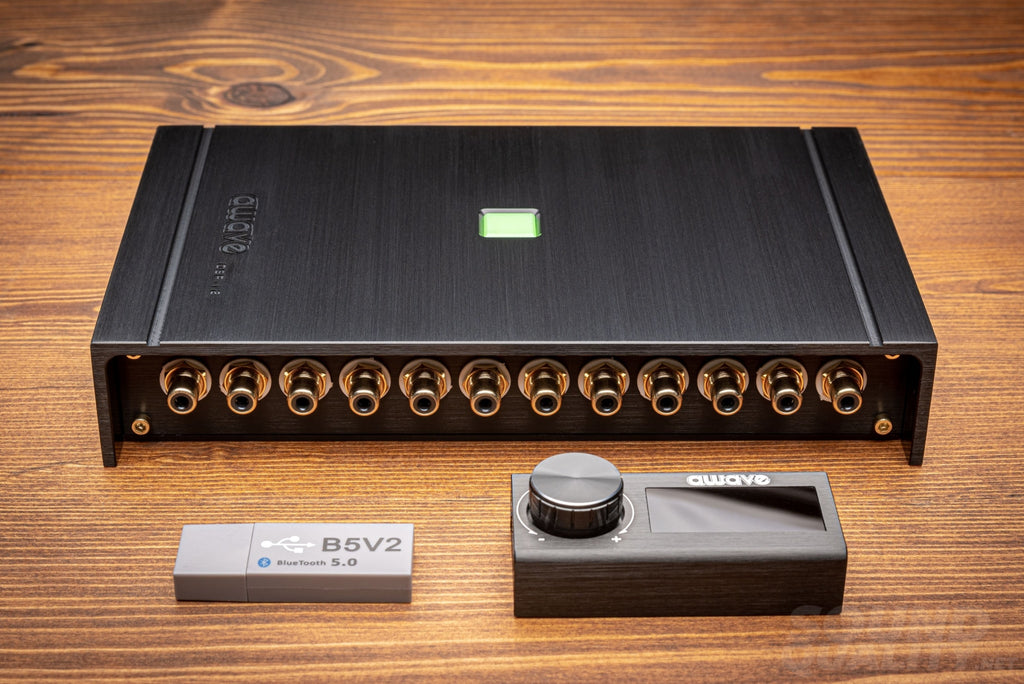

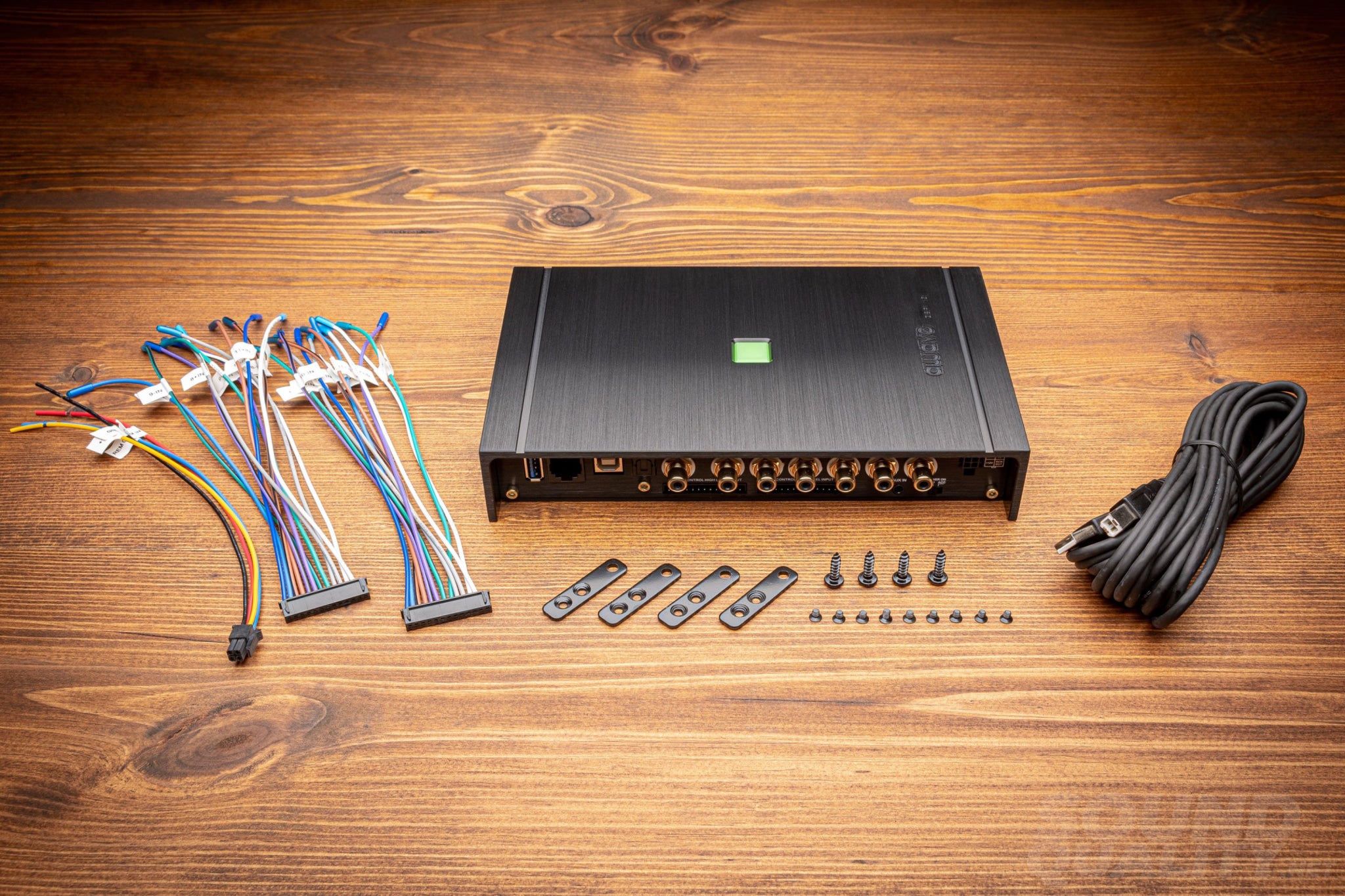

What's included:
- 1x DSP unit
- 1x Bluetooth 5.0 AptX HD module
- 1x Digital Remote Control
- 5m USB A-B cable
- 5m DRC cable
- 1x Power supply wiring harness
- 2x 6-channel high-level input harnesses
- Mounting brackets and fasteners
- 1x Instructions
