A compact 6-channel amplifier with an 8-channel DSP. 4 channels of RCA inputs, 6 high-level inputs, coax SPDIF input, optical TOSLINK input, Bluetooth AptX HD optional input, optional digital remote control for volume, sub level, preset selection, input selection, mute trigger. 6x80W RMS @ 4 Ohm output channels, 8-channel RCA output. Perfect for 3-way active front + external subwoofer amplifier or 2-way active front, passive rear fill and external subwoofer amplifier. A simple, yet powerful DSP amplifier able to run modern active SQ systems without hassle.
The DSP supports the following on every output channel:
- High pass, low pass and band pass crossovers (Linkwitz Riley, Bessel and Butterworth) up to 48 dB/oct
- 31 band fully parametric EQ with +/-15 dB correction
- Time delay up to 15 ms for time alignment, selectable in ms, cm or inches, optional linking of channel pairs
- Phase phase switching between 0 and 180 degrees
- Level correction from 0 to -40 dB, optional linking of channel pairs
- Fully functional input mixer, switching of the input channel phase to 180 degrees, allowing for the set up of a differential rear fill
- Internal pink noise generator to test each individual output channel
Configuration software for Microsoft Windows: DOWNLOAD HERE
Manufacturer provided specs:
- Power supply voltage: 9-15 VDC
- Idling current: 1.5A
- Bandwidth @ -3 dB: 10Hz-20kHz
- Output power at 1% THD-N: 6x 80W RMS @ 4 Ohm
- S/N Ratio full power A-: 100dB

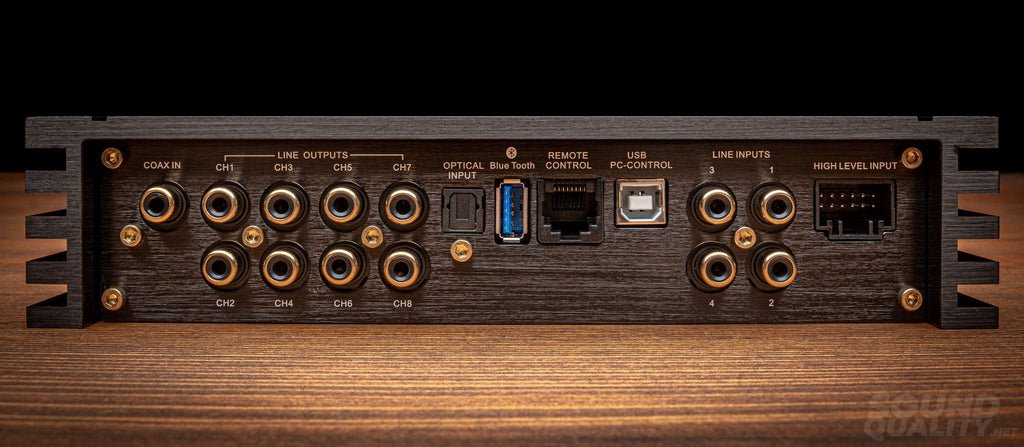

- Inputs: 4xRCA analogue, 1x RCA SPDIF coax, 1x TOSLINK SPDIF, 6x high-level, optional Bluetooth 5.0 AptX HD module
- Outputs: 8x Speaker level amplified, 8x RCA pre-outs for all channels
- Control connections: 1x USB 1.1/2.0, optional wired remote (DRC)
- 8 full setup presets
- Auto on via high level signal detect or remote input

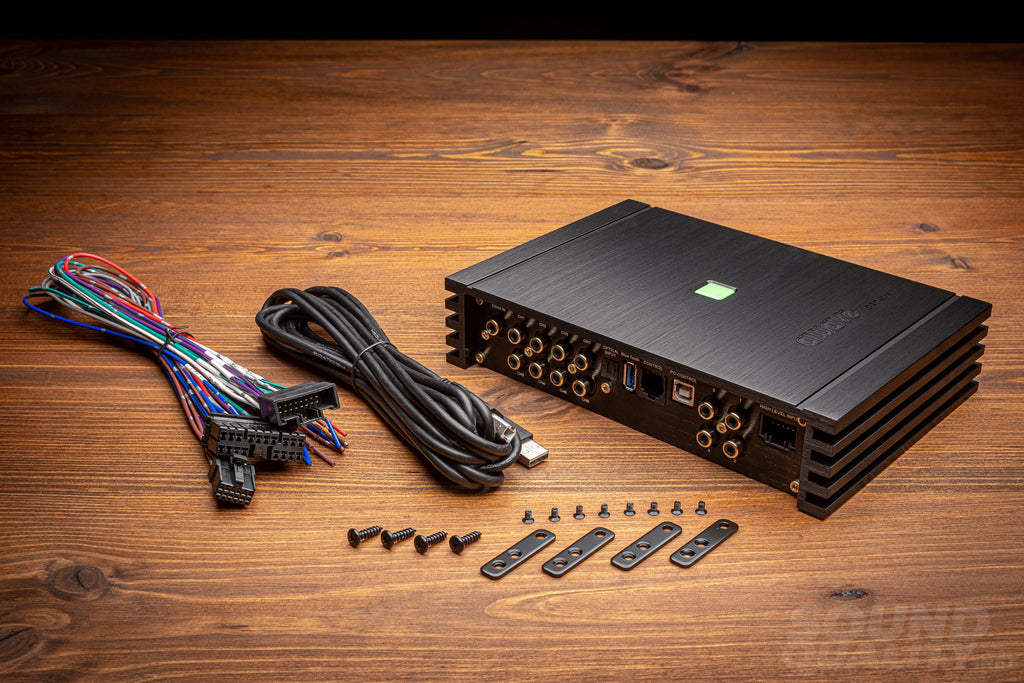

What's included:
- 1x DSP Amplifier unit
- 5m USB A-B cable
- 1x High-level input harnesses
- 1x Speaker output harnesses
- Mounting brackets and fasteners
- 1x Instructions
