The surprise in 2023, this component speaker set outclasses speakers at many times its price and does so with authority. Very lightweight midbass speakers with super soft suspension for amazingly transient response, fantastic true IB and in-door performance. low Fs for that low lows and no-nonsense compact design to fit in many OEM locations. Coupled with a large tweeter that can dig to sub-1kHz with a solid machined aluminium housing. A future classic, no doubt about it!

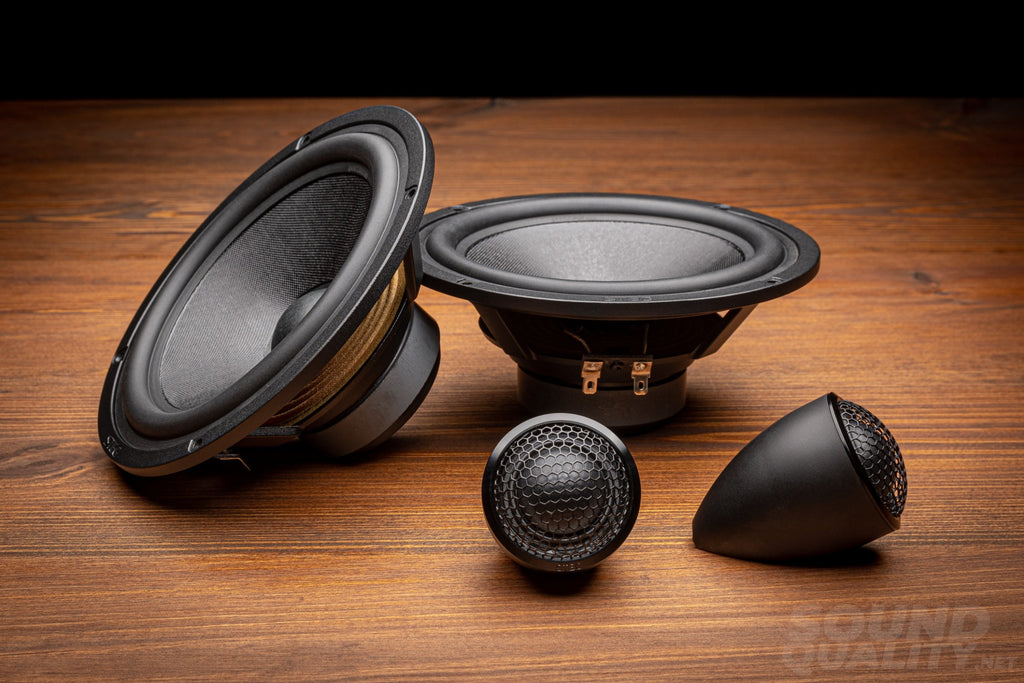

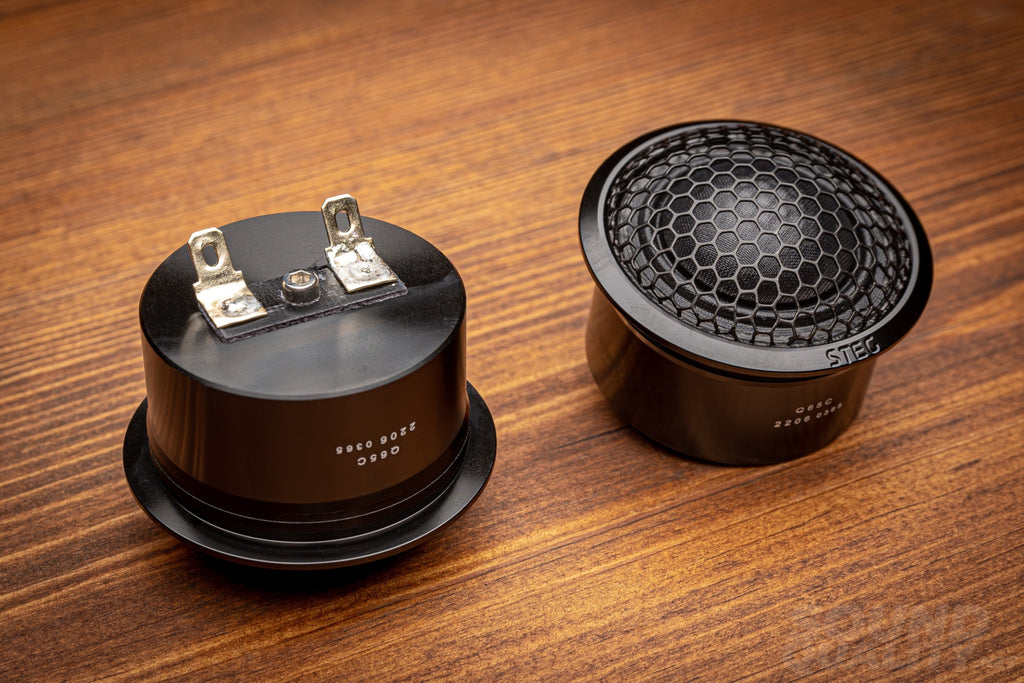

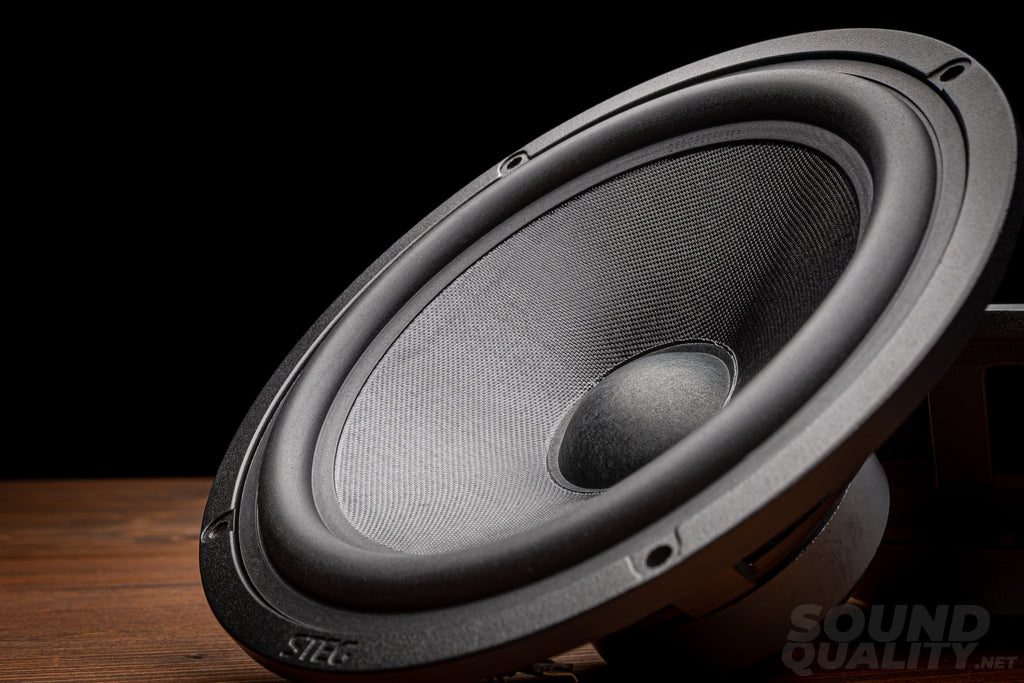

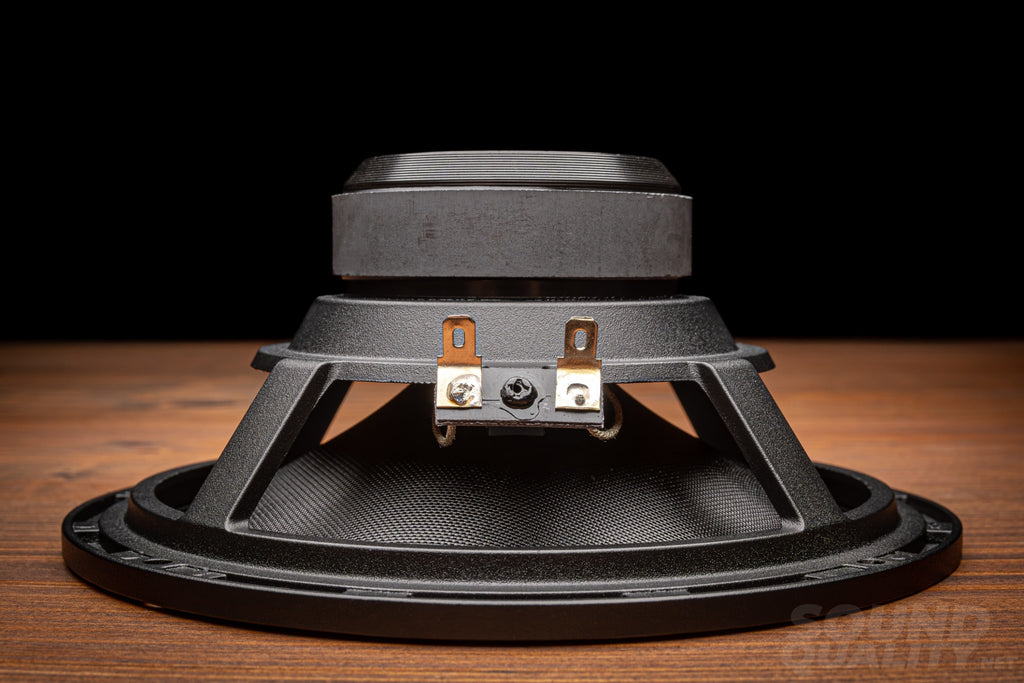

Glass fiber composite cones, die-cast aluminum midbass baskets, composite soft dome tweeters with milled aluminum housings.
This set is aimed at modern active installs with a DSP, so no passive filters are included. This is a pure modern SQ set, not suitable for old school setups.
While these are capable of taking some power and pounding properly, when tuned delicately in pure SQ, they overdeliver - we've tuned them in cars where we could make presets without a subwoofer only with the Q65C playing where you couldn't notice the difference between sub on and sub off, this is how smooth they play down low. Of course they cannot push subwoofer levels of lows, but frequency wise they do it. For classical, jazz at modest listening levels these sound fantastic even standalone. Which talks volumes about their capability.
Manufacturer provided specs:
Woofer:
- Voice coil: 25.5mm
- Rated power input: 40 W
- Frequency response: 50-7000 Hz
- DC Impedance: 4 Ohm
- Fs: 50 Hz
- Sensitivity: 89 dB (2.83V/1M)
- Qms: 4.297
- Qes: 0.714
- Qts: 0.612
- Mms: 6.326 g
- Vas: 64.95 L
- Mounting depth: 70 mm
- Mounting diameter: 148 mm
Tweeter:
- Voice coil: 1.1"
- Impedance: 4 Ohm
- Rated input power: 25 W
- Frequency response: 750-20000 Hz
- Sensitivity: 91 dB
- Mounting depth: 33 mm
- Mounting diameter: 44 mm
Our own DATS measurements:
Right out of the box, no run-in.
Woofer:
- Re: 3.486 Ohm
- Fs: 48.92 Hz
- Qts: 0.844
- Qes: 0.9022
- Qms: 13.09
- Le: 0.04399 mH at 10kHz
- BL: 3.717
- Cms: 0.91 mm/N
- Mms: 11.63 g
- Vas: 23.22 L
- Sensitivity: 90.29 dB 2.83Vrms
Tweeter:
- Re: 3.392 Ohm
- Fs: 832.1 Hz
- Qts: 0.9515
- Qes: 1.461
- Qms: 2.728
- Le: 0.04951 mH at 10kHz

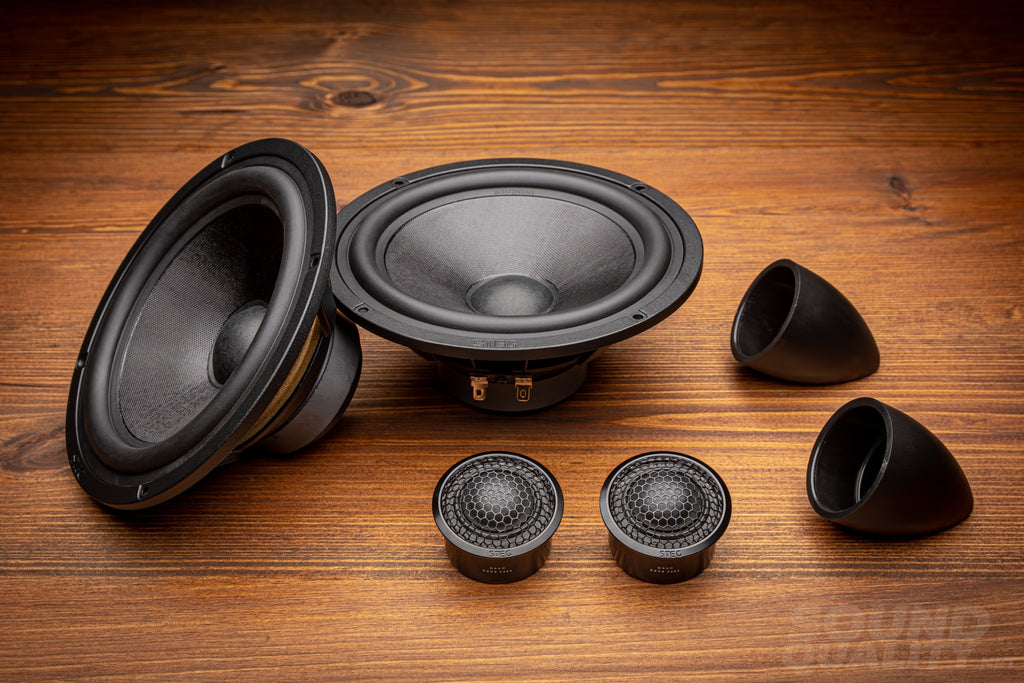

What's included:
- 2x Midbass
- 2x Tweeter
- 2x Plastic tweeter pods with adhesive pads
- 1x Instructions
