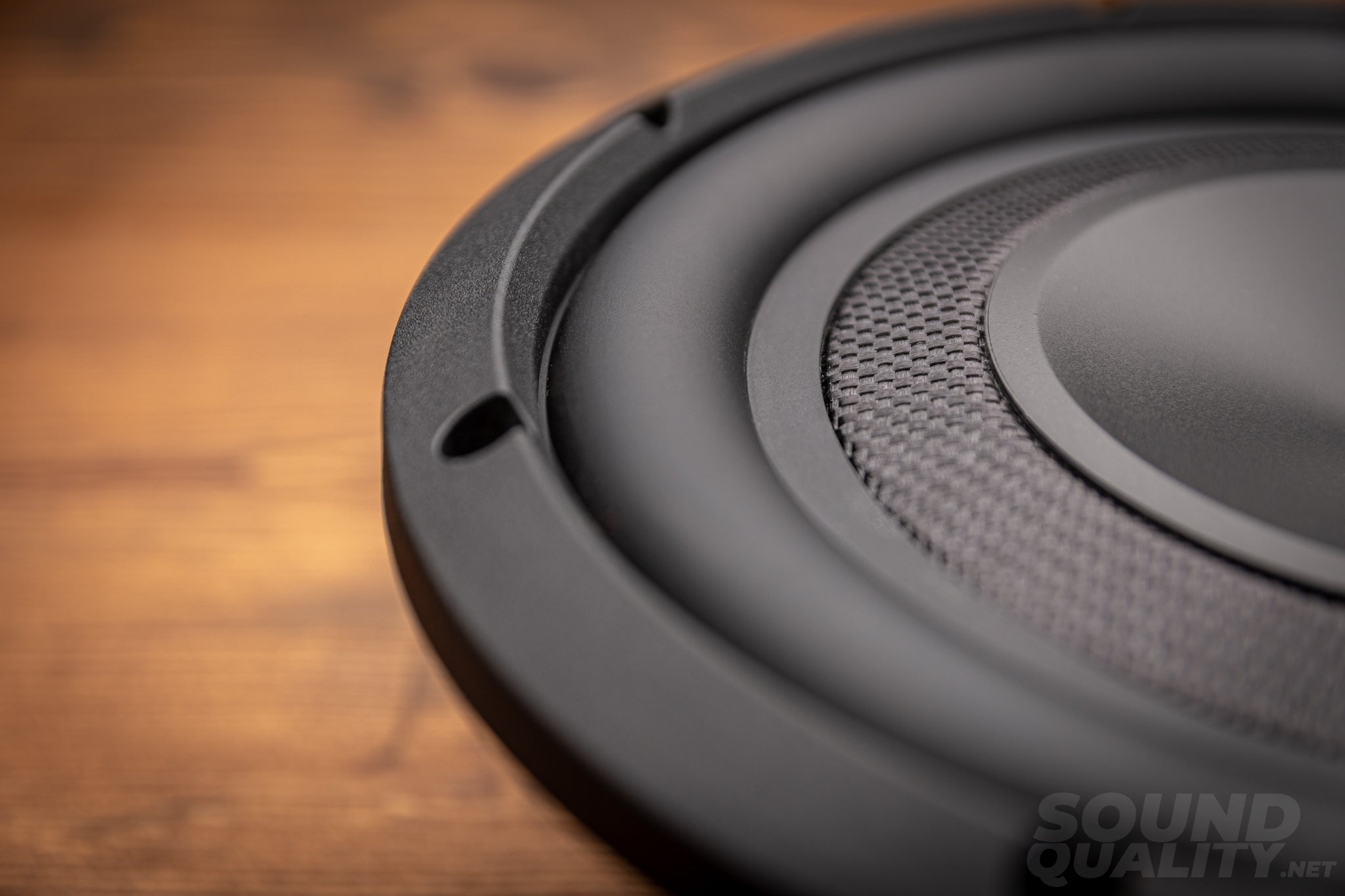

One of the most compact subwoofers with only 80mm top mount depth. The small size doesn't suggest the punch this subwoofer delivers. Accurate and responsive even in the low-mid fequencies, this can even be used as a midbass in a 3-way system.
Manufacturer provided specs:
- Power handling: 300 W RMS
- Impedance: 2x 4 Ohm (dual voice coil)
- Sensitivity: 80.61 dB 1W/1m (86.11 dB @ 2.83 Vrms)
- Re: 2.25 Ohm
- Fs: 45.76 Hz
- Qms: 6.689
- Qes: 0.995
- Qts: 0.866
- Vas: 7.72 L
- Mms: 108.21 g
- Cms: 0.11 mm/N
- Bl: 8.4
Our own DATS measurements:
Right out of the box, no run-in, both coils in parallel.
- Re: 1.668 Ohm (coils in parallel)
- Fs: 48.69 Hz
- Qts: 0.6837
- Qes: 0.7588
- Qms: 6.909
- Le: 0.6197 (coils in parallel)
- Mms: 83.08 g
- Vas: 7.88 L
- Sensitivity: 82.68 dB 1W/1m
Our own nearfield measured frequency response:
Visualized with 1/24 Oct smoothing.
Cone breakup happens at 550Hz, so this driver is absolutely useable up to 350-400 Hz with 24 dB/oct high pass.
What's included:
- 1x Subwoofer
- 1x Instructions
