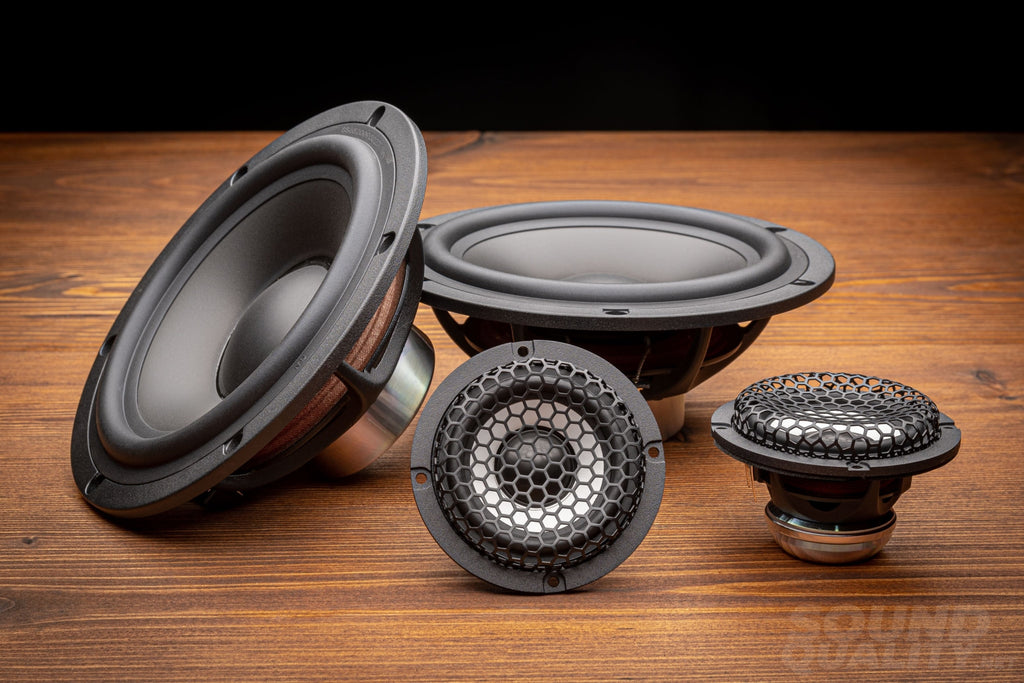

An absolutely amazing 2-way set with a large 7" sub/midbass speaker and a 2.6" wideband for the mid/high frequencies. An unconventional configuration where the woofer digs all the way down in the sub-40Hz range and the wideband takes over at just under 300 Hz. Wonderful installation possibilities are enabled by this set with amazing detail, texture and dynamics. All in a compact and lightweight package.
The enormous 55.8mm woofer voicecoil and soft 65sh rubber suspension plus a strong neodymium magnet motor makes this a detailed high-end 7" subwoofer that plays well in the low-midrange too. So this coupled with the elite 2.6" ceramic wideband makes the perfect combo for really high-end but simple setups. Of course only active operation is possible, no passive crossovers are provided (nor would be of any use anyway). The end results with proper installation can be exceptional!
Manufacturer provided specs:

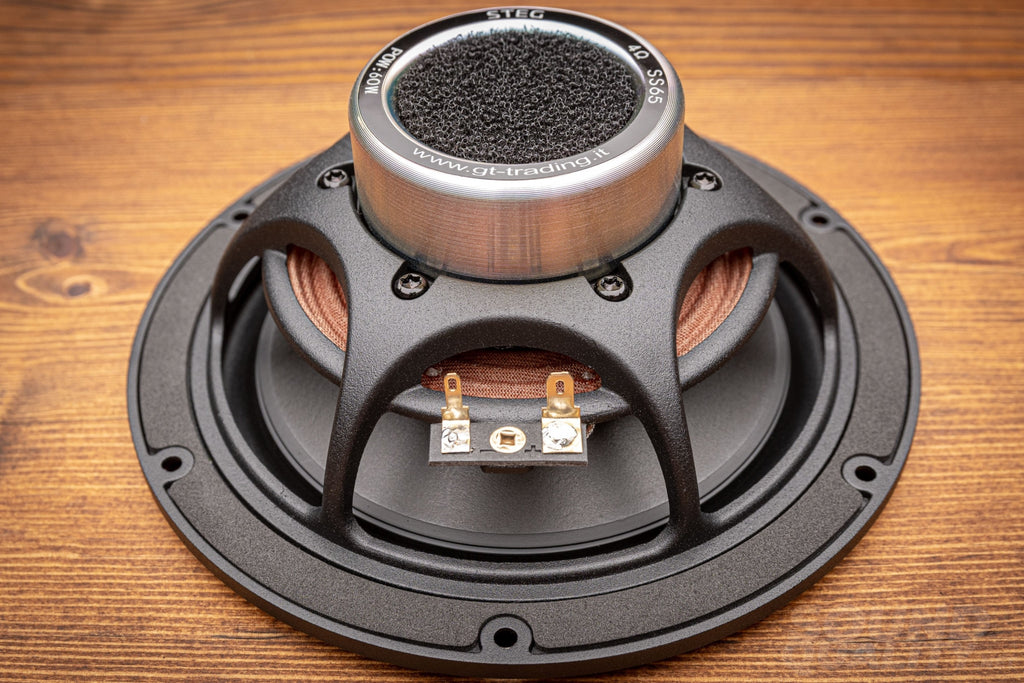

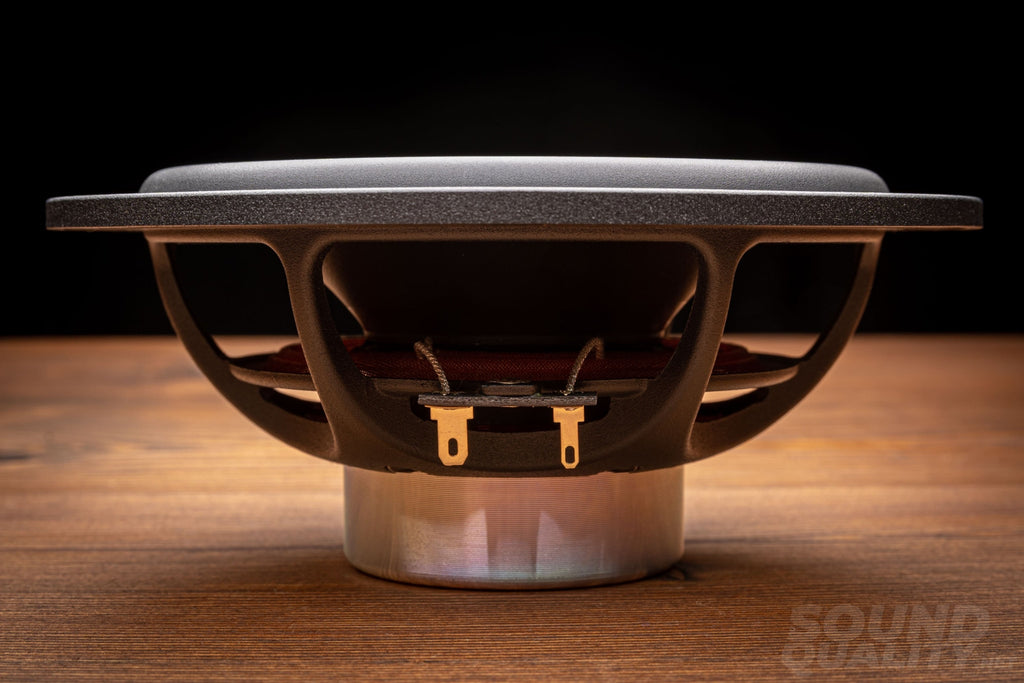

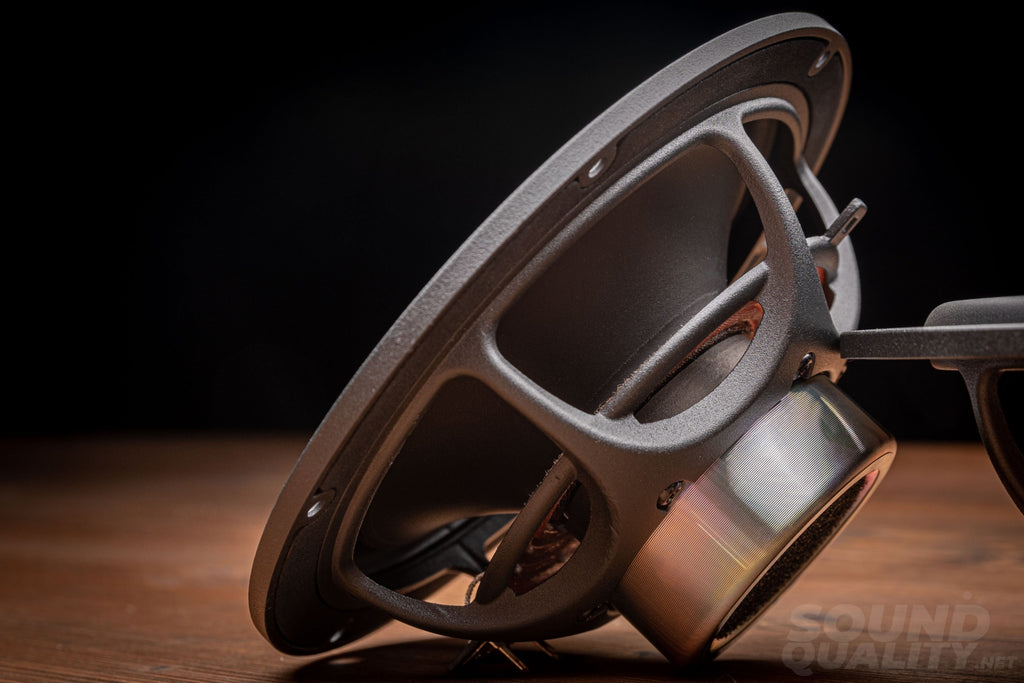

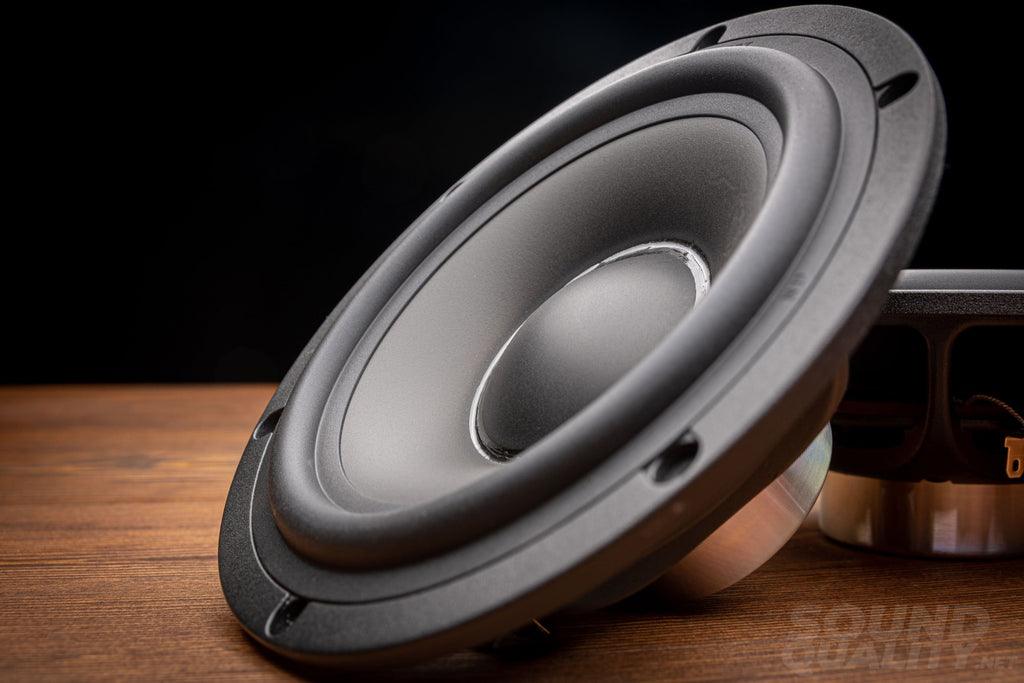

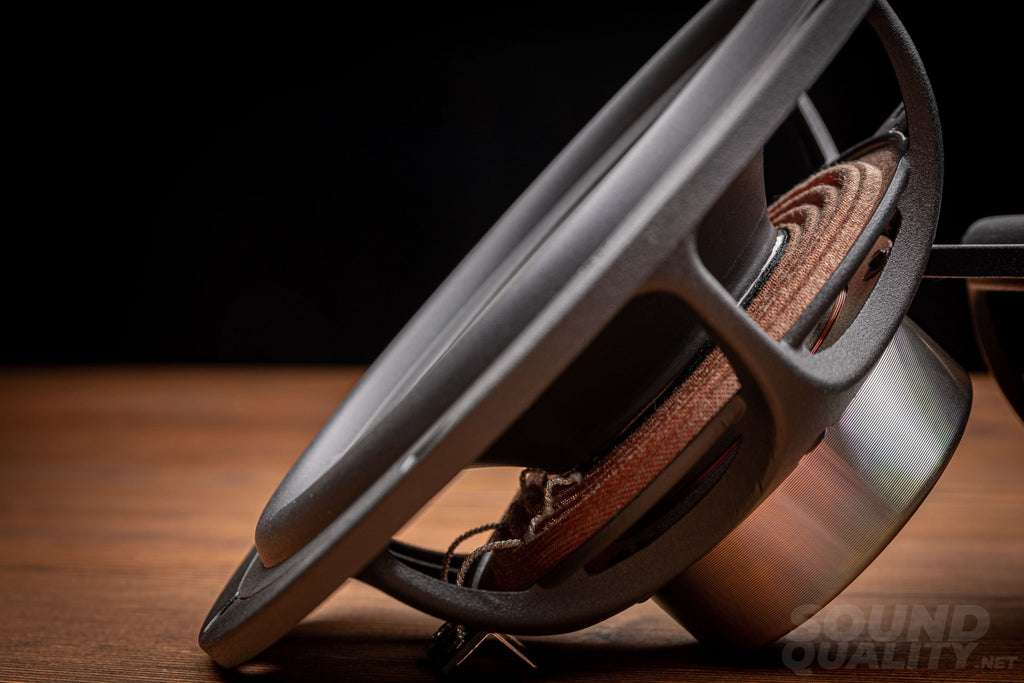

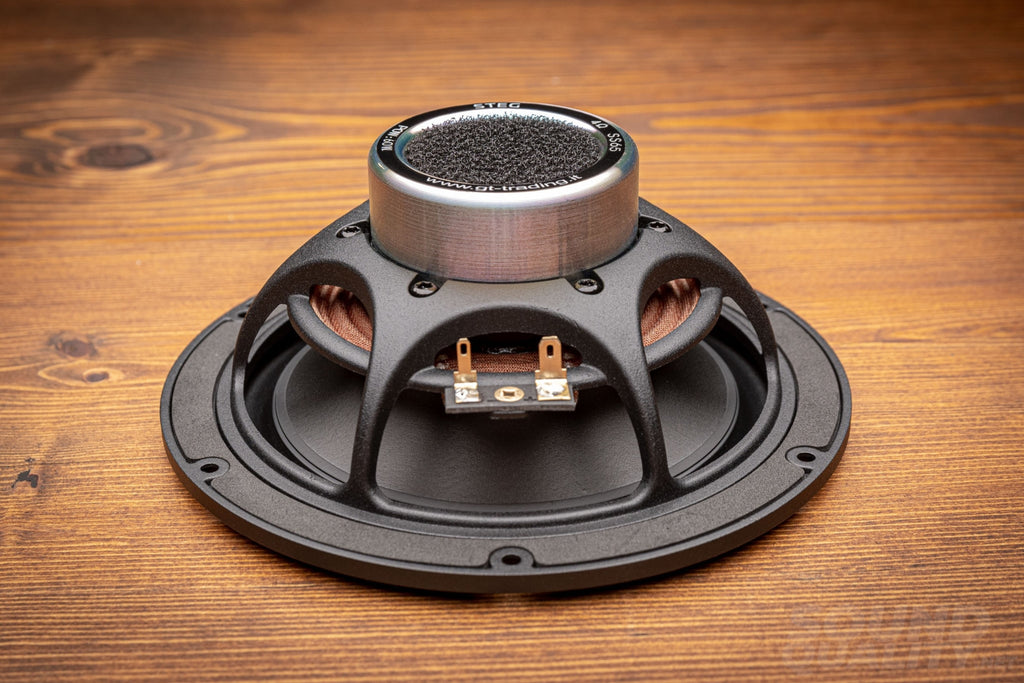

SS-65 Woofer:
- Membrane material: TIL
- Voice coil: 55.8 mm
- Rated power input: 60 W (laughably underrated given the voice coil size and suspension characteristics)
- Frequency response: 40-1000 Hz
- Voice coil former: TILSV
- Impedance Z: 4 Ohm
- DC Resistance: 3.8 Ohm
- Sensitivity: 84 dB
- Qms: 5.62
- Qts: 0.36
- Le: 1.08 mH
- Bl: 10.4
- Fs: 40 Hz
- Mms: 39.8 g
- Cms: 0.33 mN
- Sd: 143 cm2
- Vas: 9.7 L
- Xmax: 4.2 mm
- Weight: 660 g
- Mounting depth: 65 mm
- Mounting diameter: 166 mm

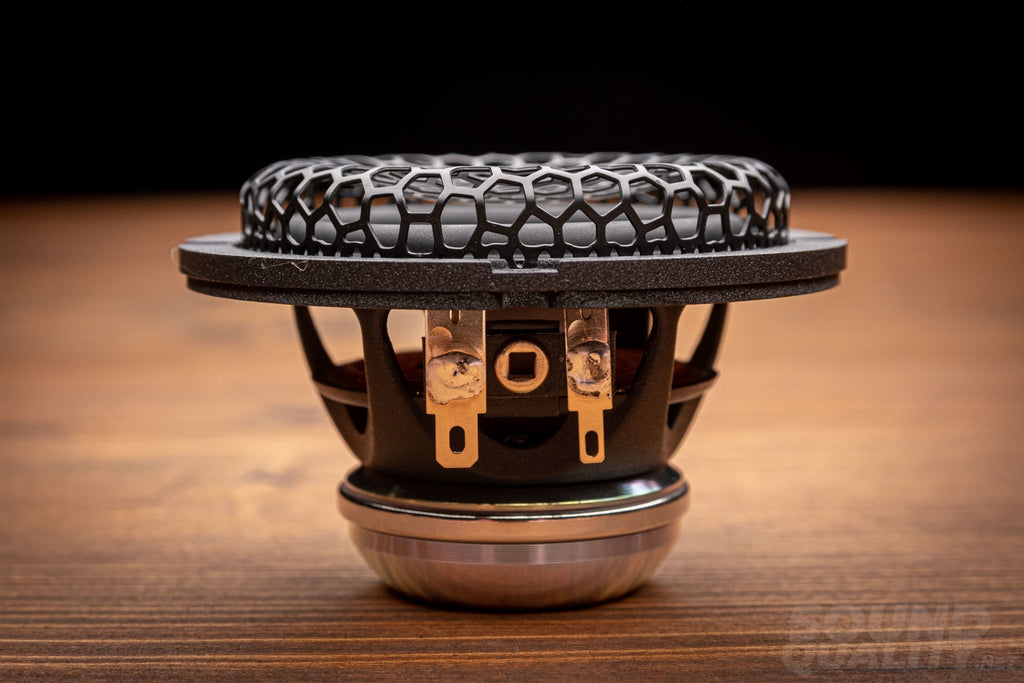

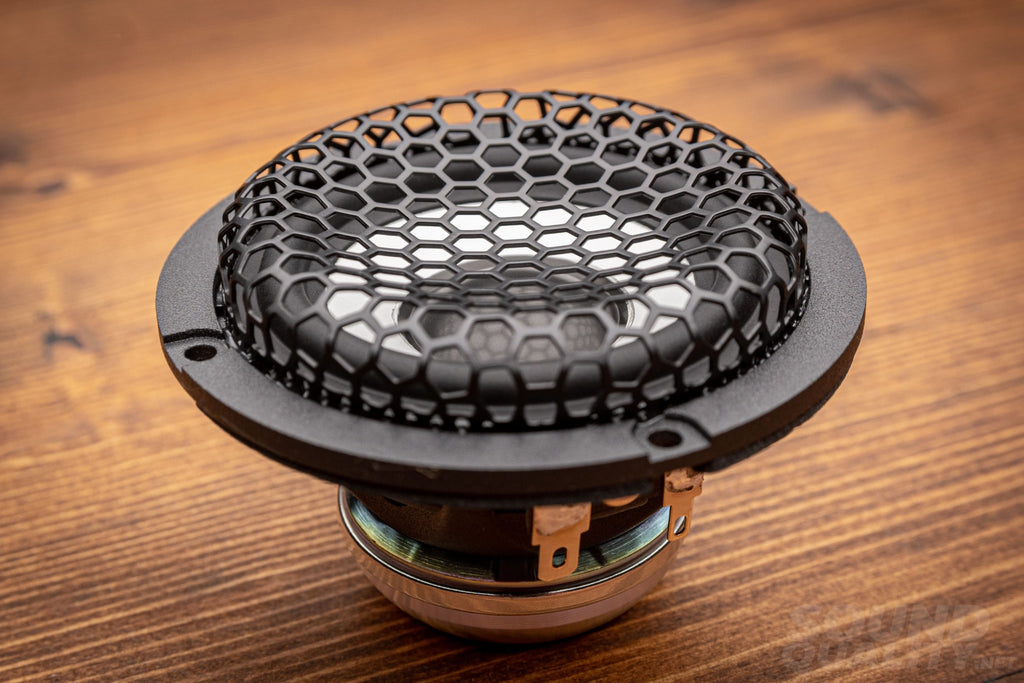

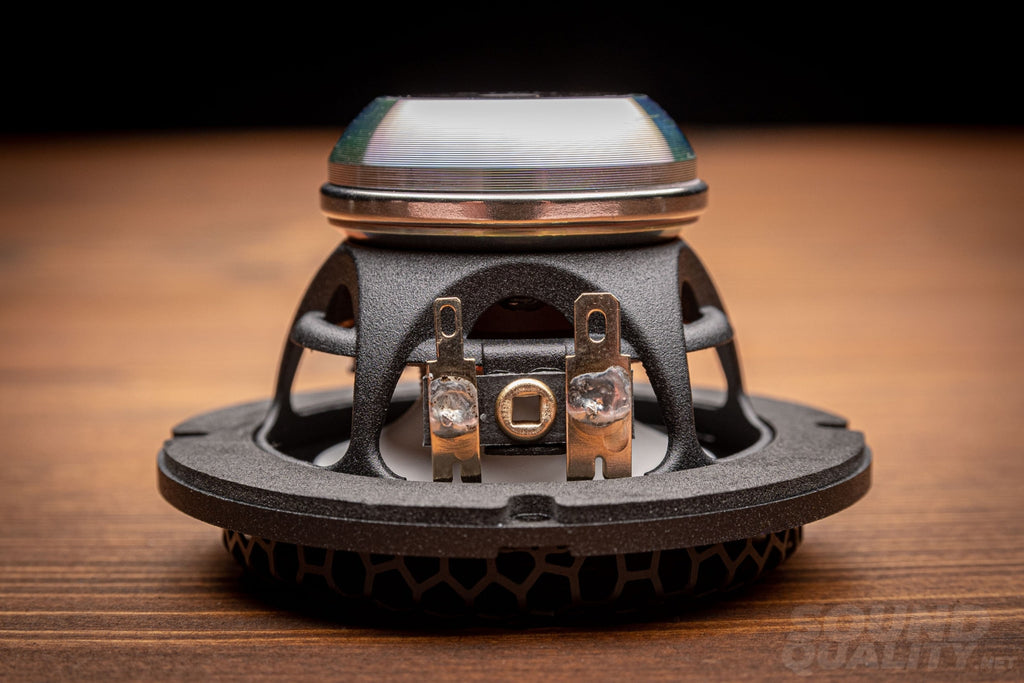

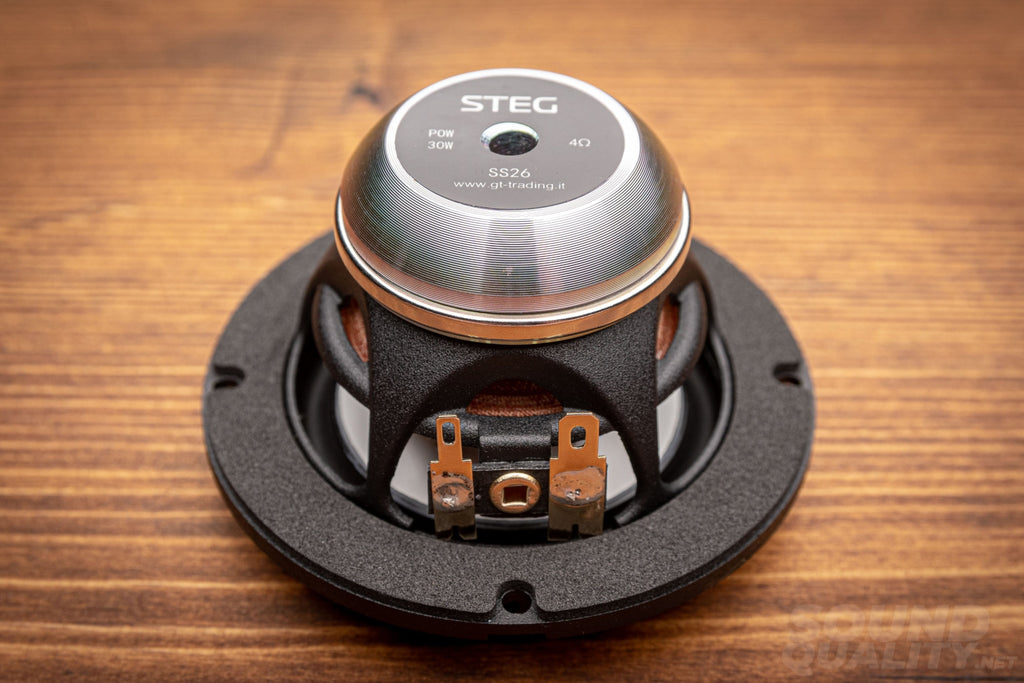

SS-26 Wideband:
- Membrane material: ceramic
- Voice coil: 20.4 mm
- Rated power input: 30 W
- Frequency response: 145-20000 Hz
- Voice coil former: KSV
- Impedance Z: 4 Ohm
- DC Resistance: 3.5 Ohm
- Sensitivity: 86 dB
- Qms: 11
- Qts: 0.49
- Le: 0.15 mH
- Bl: 4.27
- Fs: 145 Hz
- Mms: 2.71 g
- Cms: 0.38 mN
- Sd: 26.76 cm2
- Vas: 0.26 L
- Xmax: 1.5 mm
- Weight: 220g
- Mounting depth: 40mm
- Mounting diameter: 77 mm
What's included:
- 2x Midbass speakers

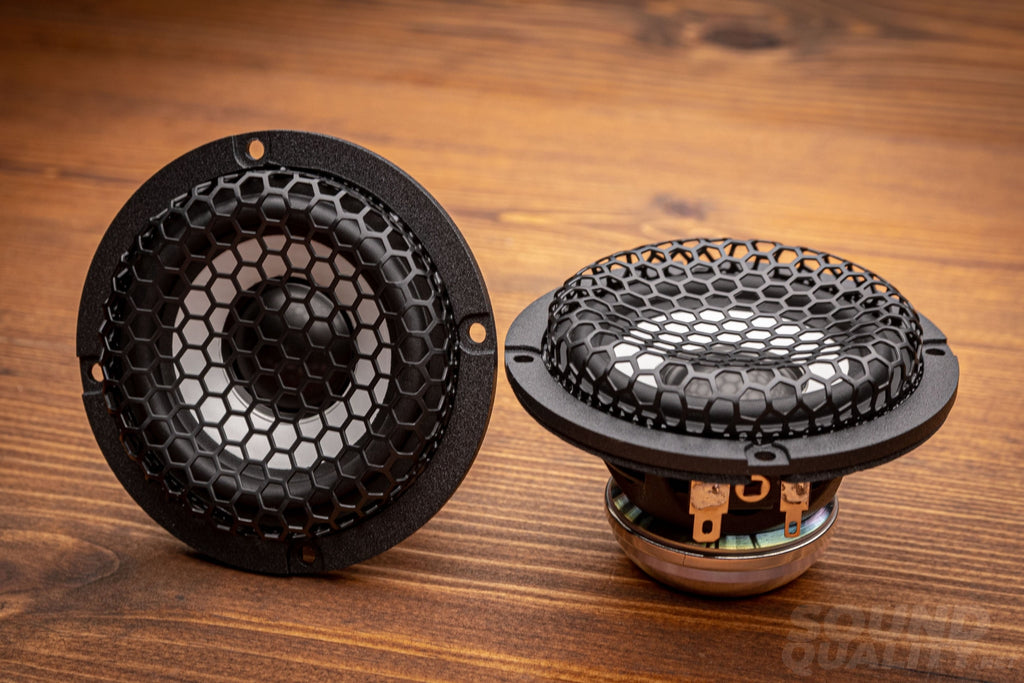

- 2x Wideband speakers with integrated protective grilles
- 1x Instructions
- 1x Wooden box packaging
