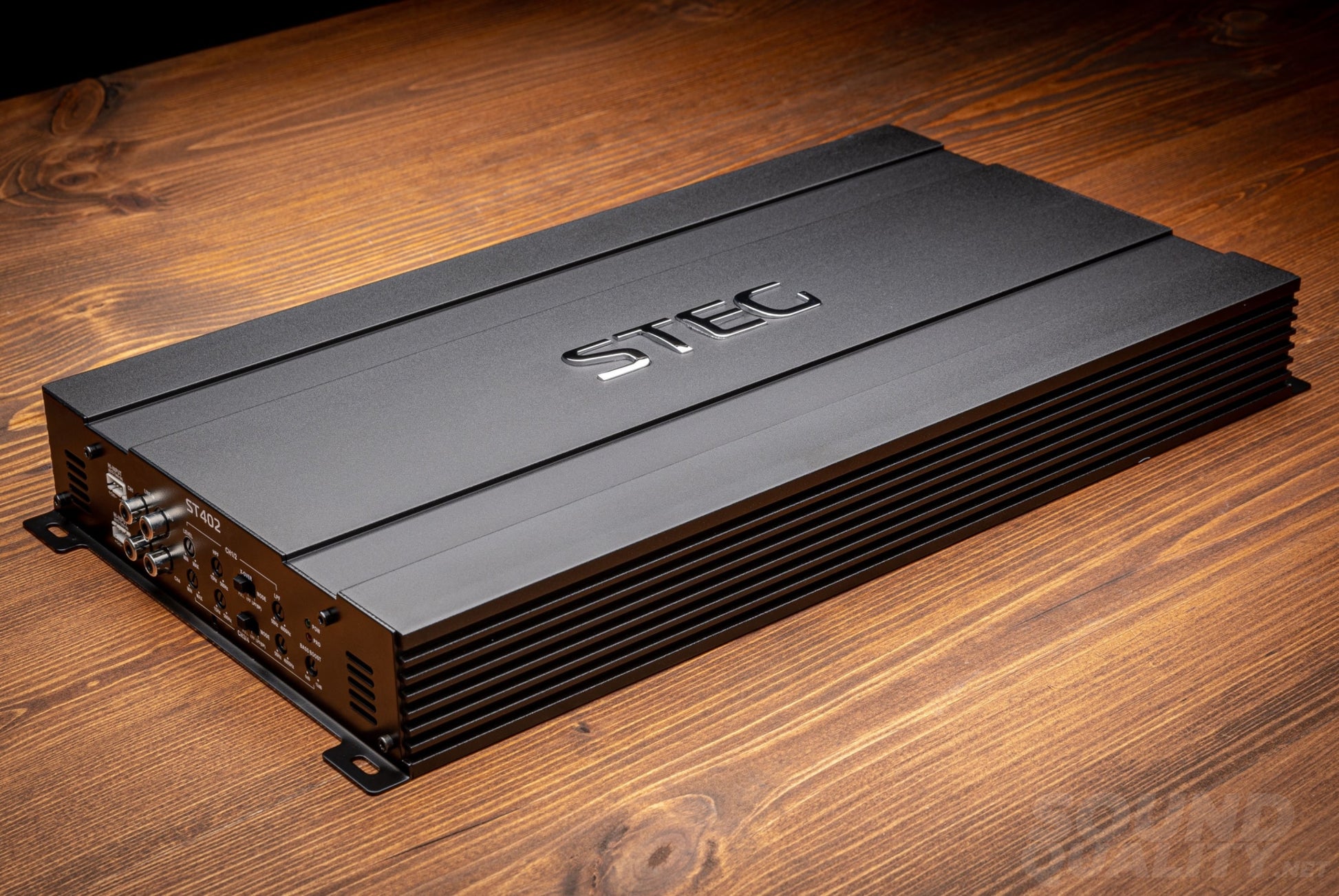

Class AB sound quality doesn't have to be expensive and the ST series amps are a proof of that. Ready for both old-school passive systems and active setups as well, these provide reliable AB power for daily builds.
Manufacturer provided specs:
- Output power RMS @ 4 Ohm, 14.4V: 120W x 4
- Output power RMS @ 2 Ohm, 14.4V: 190W x 4
- Output power RMS @ 4 Ohm bridged, 14.4V: 380W x 2
- Damping factor >100
- Frequency response: 5-38000 Hz
- THD: <0.09% @ 4 Ohm
- S/N ratio: >88dB

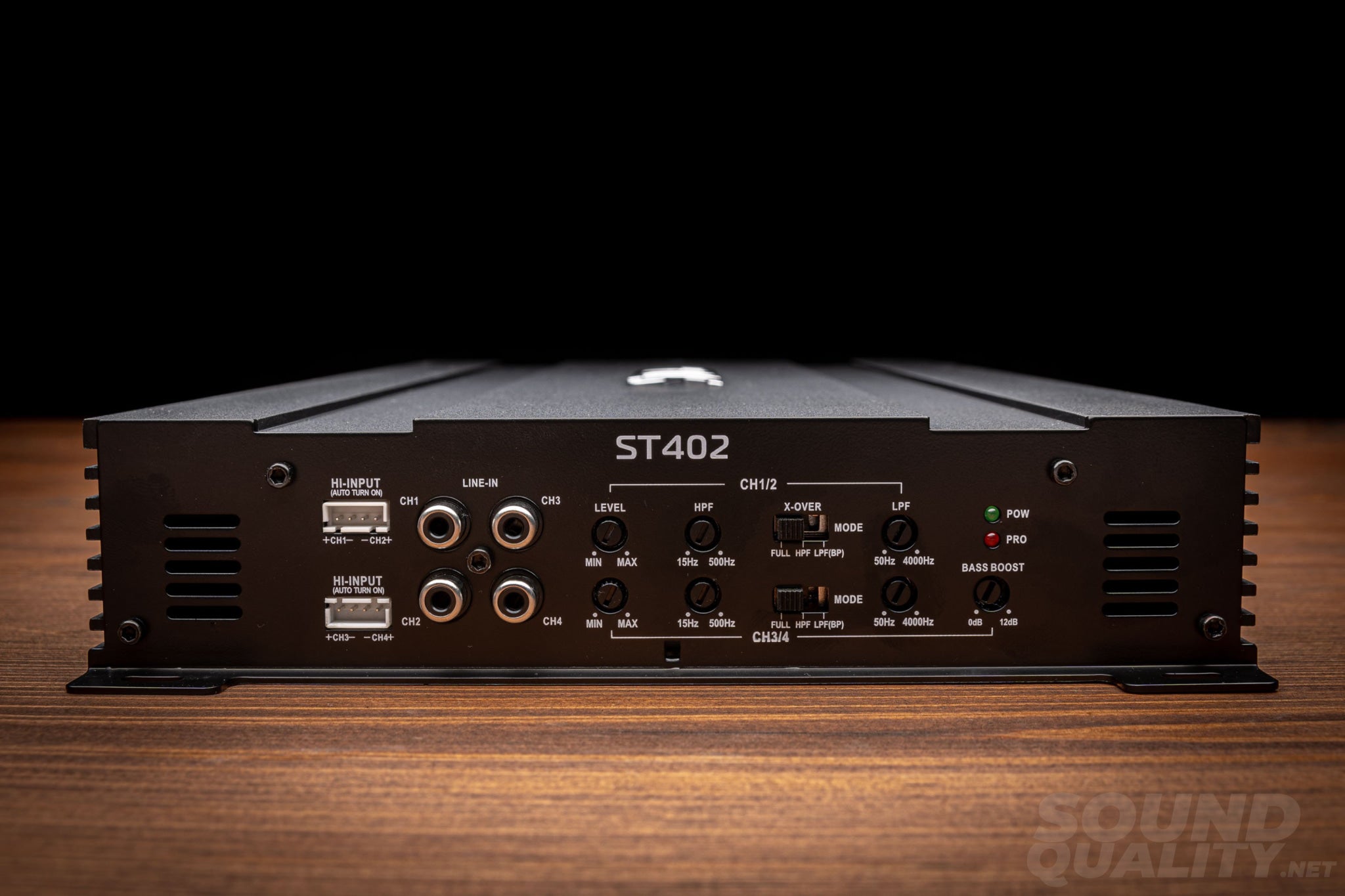

- Input: 4x RCA, 4x high level
- Input sensitivity: 500mV-9V
- Power on options: 12V remote / high level auto detection

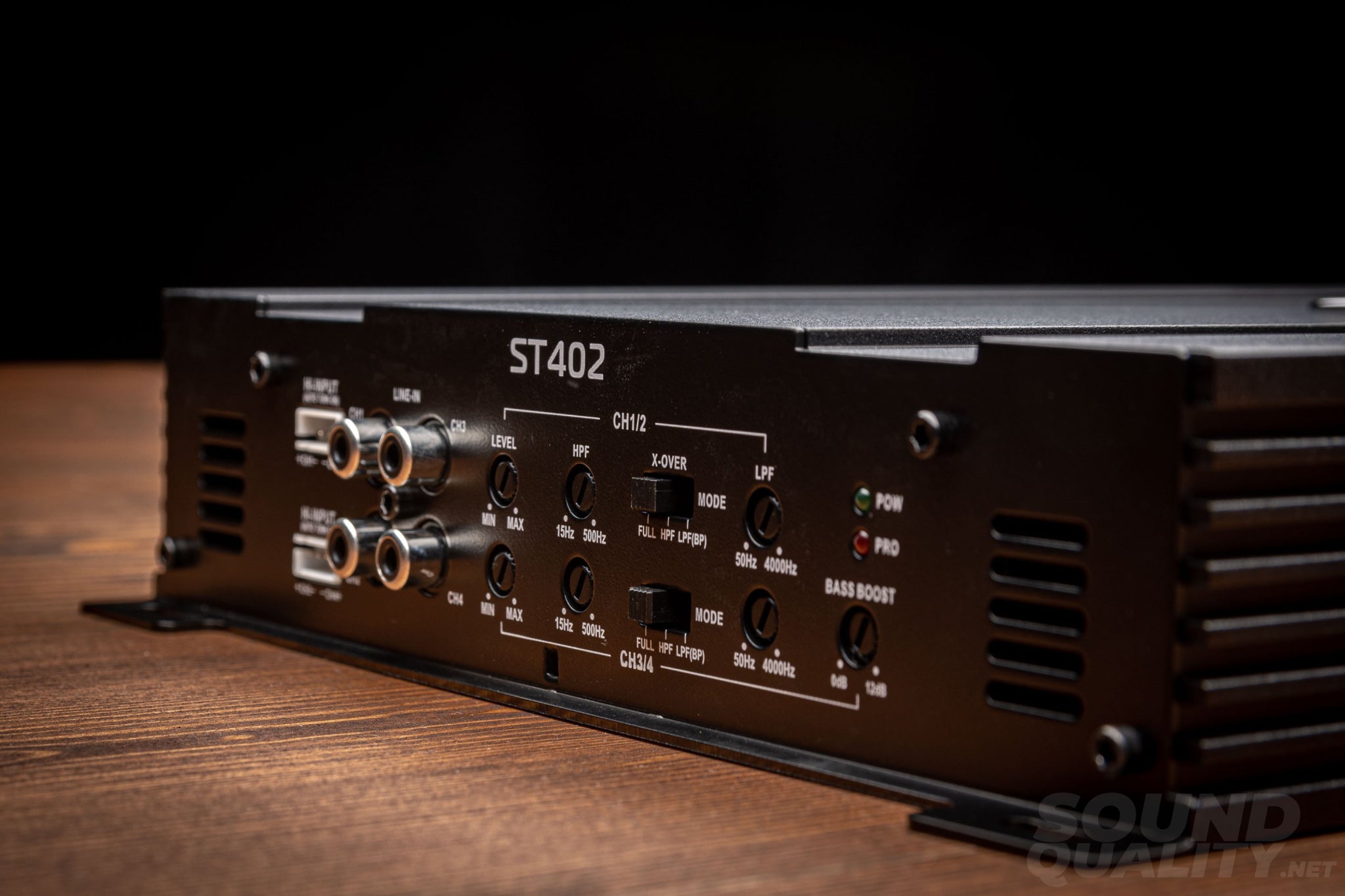

- Low pass filter options: 50Hz-4000Hz (independend between channels 1-2 and 3-4)
- High pass filter options: 15Hz-400Hz (independend between channels 1-2 and 3-4)
- Bass boost dial: 0-12dB @ 45Hz (on channels 3-4)

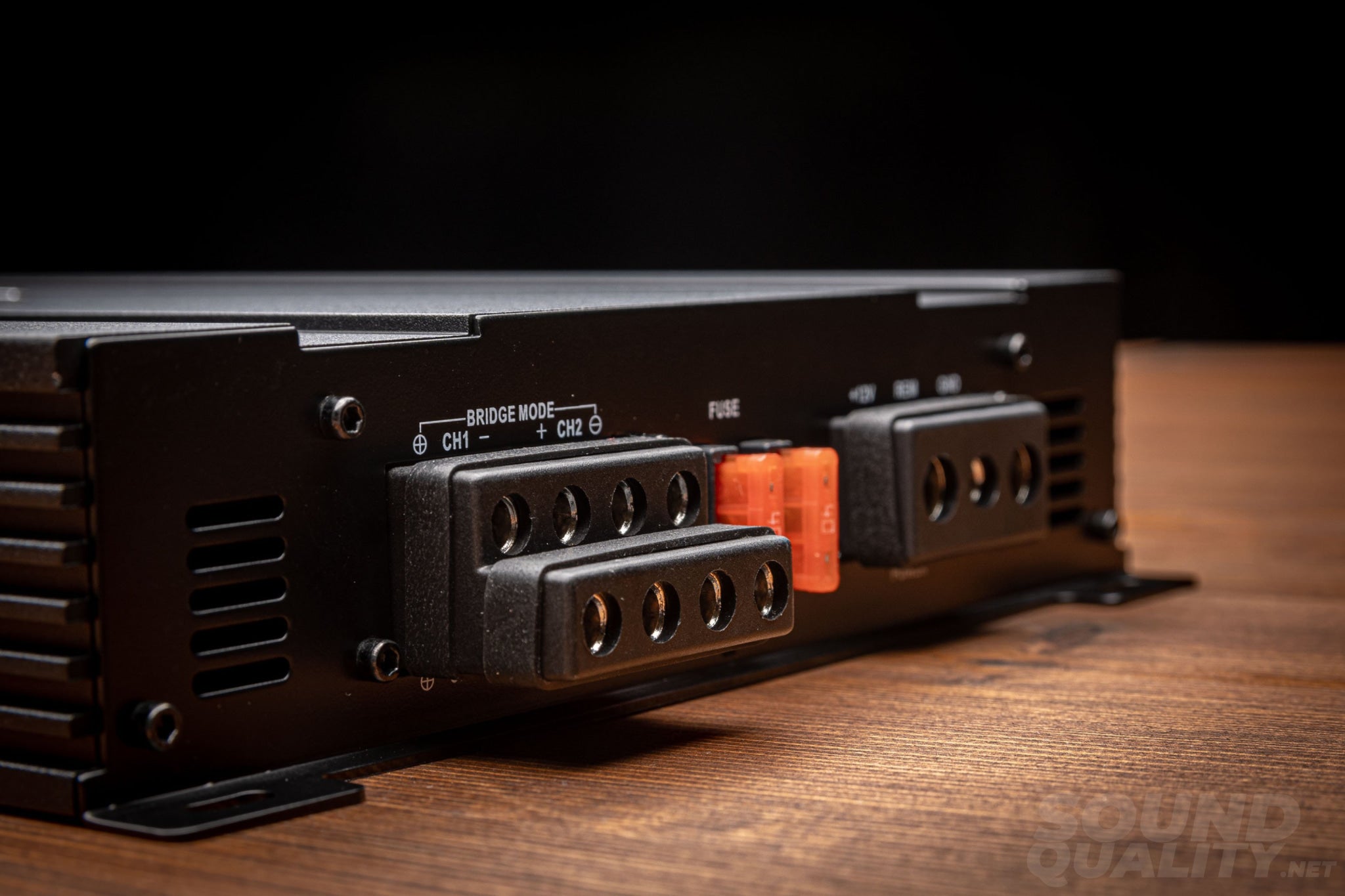

- Internally fused with 2x40A fuses
- Dimensions: 560x230x52 mm
What's included:
- 1x Amplifier
- 2x high level input harness
- 2x spare 40A fuses
- 2x Hex keys for power and terminal tightening
- 4x Amplifier mounting screws
- 1x Instructions
